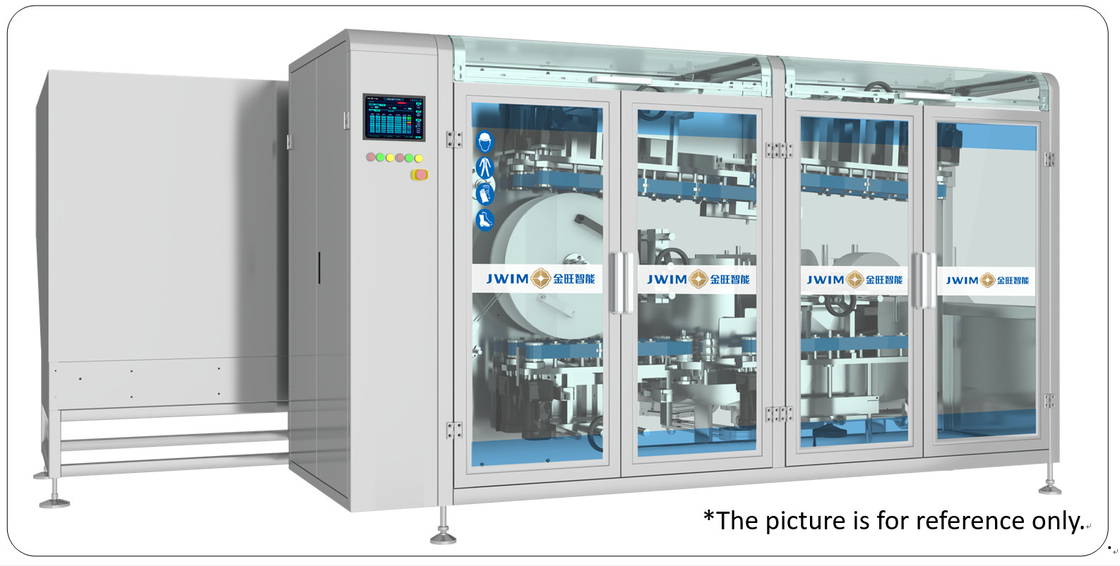

LP-D70 Automatic Barrel Bottle Unscrambler Machine 1-5L 3000BPH

LP-D70 Automatic Bottle Unscrambler

1. Introduction

The LP-D70 automatic bottle unscrambler consists of a bottle unscrambler turntable, bottle reject parts, unscramble bottle parts and an electrical box. A large number of disorderly bottles are put into the unscrambler turntable by the bottle loading machine, and are transferred to the unscramb ler part through the conveyor belt, so that the bottles can be conveyed to the conveyor belt upright. The model has compact structure, simple principle, mature technology, stable and reliable actions



2. Parameters of 50-1000ml automatic bottle unscrambler

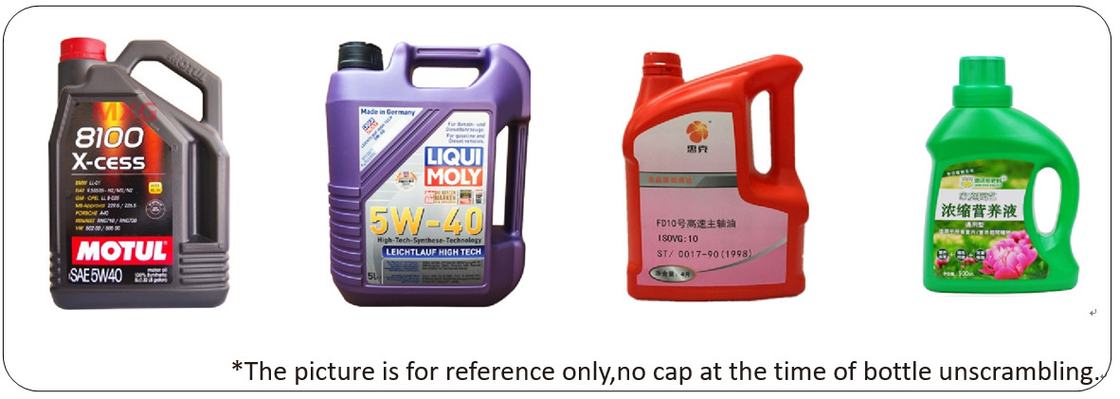

3. Widely used in agrochemical,fine chemical,daily chemical,fertilizer,oil and other industries 1-5L square barrel bottle automatic unscramble.

1. Bottle loading (bottle enters the bottle unscrambler turntable through the bottle loading machine)

2. Bottle delivery (the round turntable sends the bottles to the unscramble station, and the belt in the turntable can be used for different bottle diameters by increasing or decreasing the belt in the turntable)

3. Kick the bottle (reject the overlapping bottles to facilitate bottle sorting)

4. Hook bottle (use the bottle hook device to stand the bottle hook upright with the bottle mouth facing forward)

5. Stand up the bottle (use the bottle stand up mechanism to erect the bottle with the bottom of the bottle facing forward)

6. Bottle Feeding out(the upright bottle is transported to the filling station through the conveyor belt)

7. Rejection of inverted bottles (detection of inverted bottles through photoelectric, and automatic rejection of inverted bottles into the upper bottle hopper by the mechanical inverting device)

Advanced Features

1. The structure is compact, the floor space is small, the whole machine is simple, with only three operation buttons, the operation is simple, and it can be completed by one button.

2. When changing different bottle size, you do not need to change anything, you only need to change the belt in the bottle hopper and adjust the space of the unscrambling structure. And it is applied to 50-1000ml bottle.

3. Bottle mouth flip + bottle mouth blowing function to ensure that there is no impurities in the bottle and ensure product quality. (This function is optional)

4. Automatic bottle elevating function, you only need to put the bottles in the bottle elevator, a sensor is installed in the rotary plate, it will automatically elevates the bottles when there is not enough bottle, it will start when the bottles are enough consequently

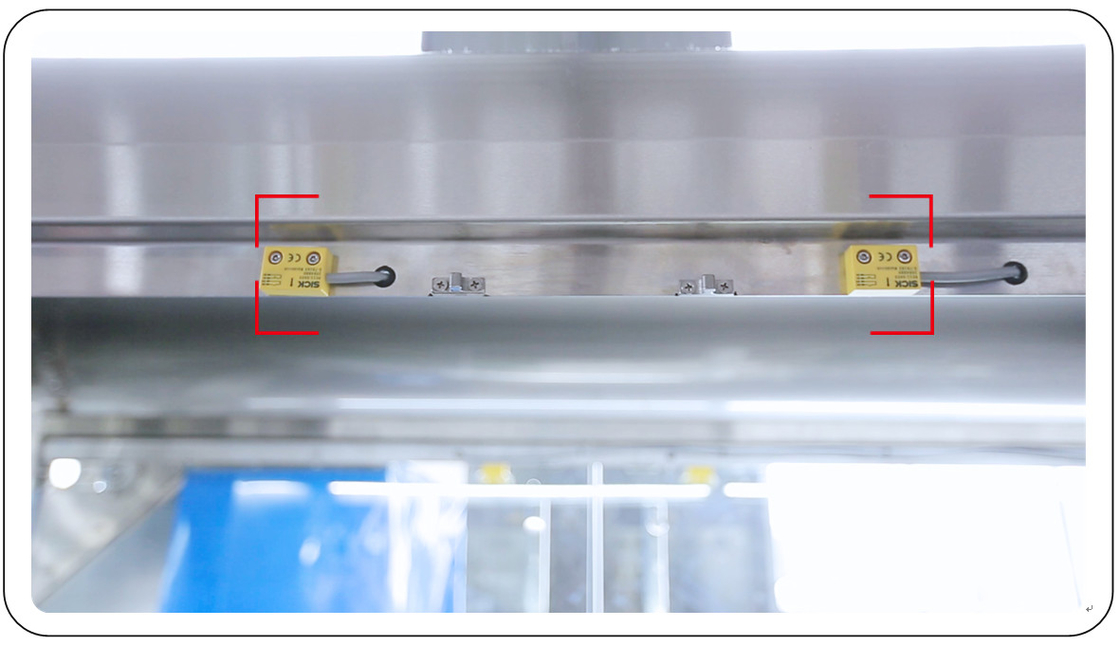

5. Coordination sensor, it will stop bottle unscrambling when there is jam of the other sections of the filling line, it will start again when the jam is cleared. It will have the perfect linkage with the other sections of the filling line.

6. Equipped with inverted bottle removal device, when bottle fall down, the photoelectric sensor will detects the inverted bottles, it will kicks the bottle back to the bottle collection bucket, without human intervention.
