Place of Origin:
In China
Brand Name:
JWIM
Certification:
CE,CO,ISO
Model Number:
CCG1000-12TJ
1. Introduction

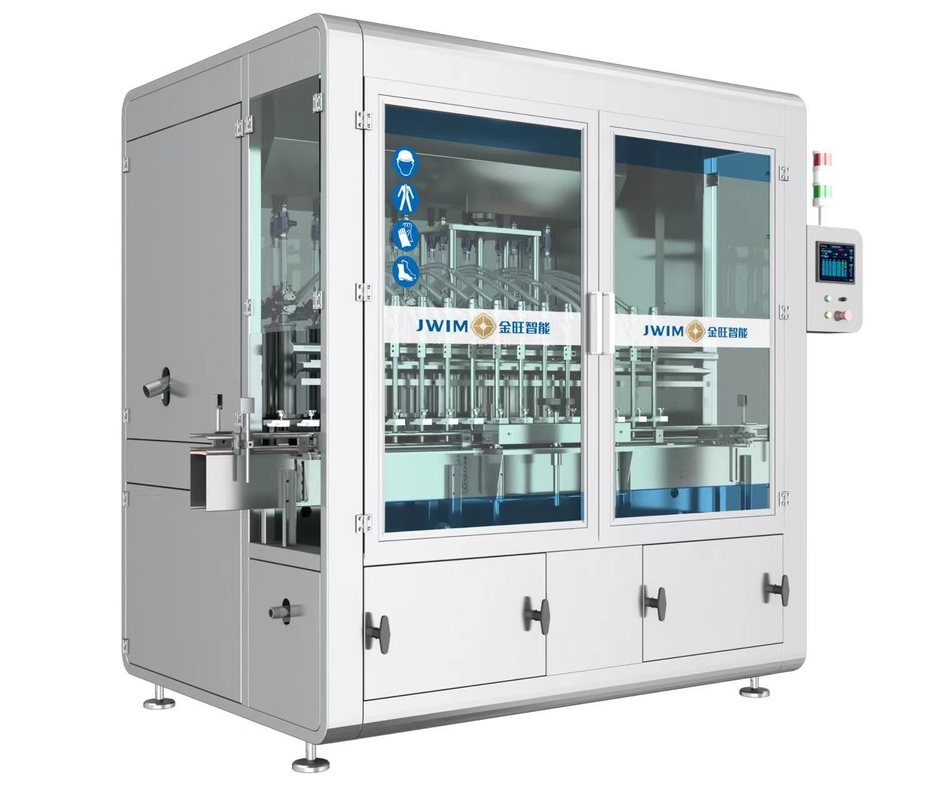

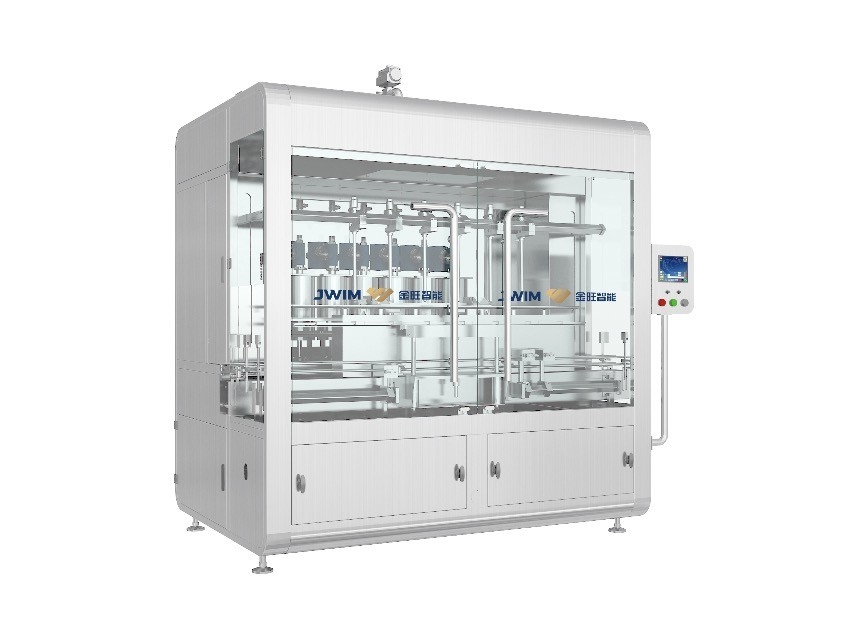

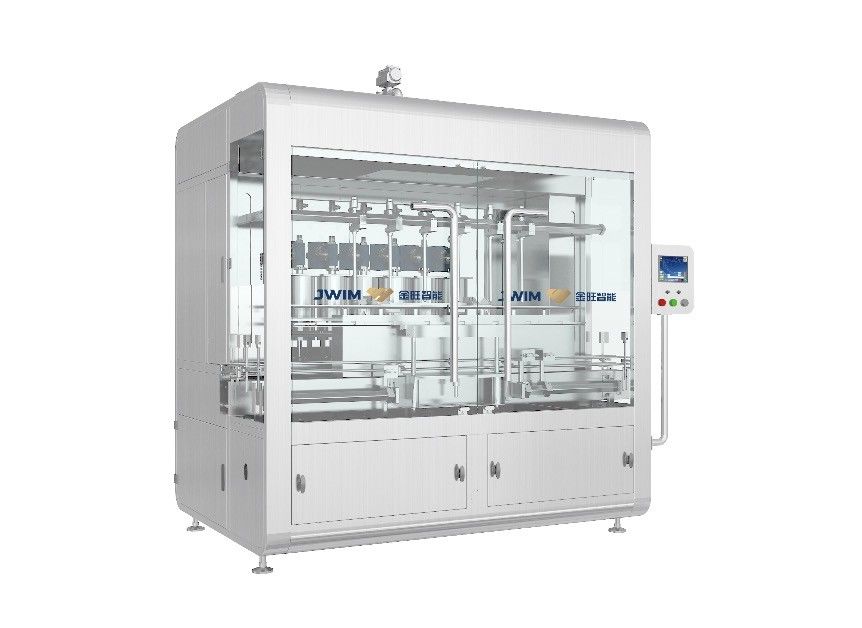

CCG1000-20TJ Automatic linear piston filling machine is an extremely flexible piston filler. capable of filling accurately and rapidly a wide variety of products from low viscosity liquids to high viscosity paste or cream with or without chunks or particulates.
2. Technical Parameters of CCG1000-12TJ Automatic Piston Filling Machine
| 1 | Capacity |
100ml: ≤5400 BPH 1000ml:≤2500BPH Capacity differs from product, drum and product characteristic |
| 2 | Applicable Bottle Size |
Round Bottle: Φ40-95mm Height:80-230m Flat/Square Bottle: L: 40-95mm W: 40-95mm H: 80-230mmm |
| 3 | Filling Volume | 50-1000ml |
| 4 | Filling Precision |
±1g (50-200ml) ±1.5g (200-500ml) ±2g (500-1000ml) Capacity differs from product, drum and product characteristic |
| 5 | Product Feeding Height | 2300mm |
| 6 | Product Feeding Diameter | DN40 |
| 7 | Filling Nozzle Diameter | Φ18mm |
| 8 | Min Opening Diameter | ≥Φ22mm |
| 9 | Air Pressure | 0.6-0.8MPa |
| 10 | Power Source | ～380V 50Hz/3.55KW |
| 11 | External Dimension | 2835×1490×2480mm(L×W×H) |
| 12 | Weight | About 1400kg |
3. Features of 50-1000ml Automatic Piston Filling Machine
a) It is widely used for the automatic filling from 50-1000ml in agrochemical, chemical, fertilizer, personal care products, oil , and other related industries.
b)The filling unit uses an off-cylinder structure, it can completely discharge the product in the tank, effectively avoid cross-contamination. This structure also makes the sealing ring changing easier.
c)The latest PTFE sealing parts improves the wear resistance and service life, reducing the maintenance cost.
4. Pesticide Filling line Application Allocations
| No. | Name | Brand | Picture |
| 1 | PLC | Schneider | |
| 2 | HMI | Schneider | |
| 3 | Inverter | Schneider | |
| 4 | Servo System | Schneider | |
| 5 | Counting Sensor | SICK | |
| 6 | Proximity Switch | Schneider | |
| 7 | Power Switch | Schneider | |
| 8 | Pressure Gauge | SMC | |
| 9 | Cylinder | FTEC | |
| 10 | Solenoid Valve | FTEC | |
| 11 | Button | Schneider | |
| 12 | Alarm Light | Schneider | |
| 13 | Circuit Breaker | Schneider | |
5. Our After-sales Service
a) Machine warranty of one year. Spare parts free of charge are supplied within one warranty year (easily damaged parts and man-made damage are exclusive). After a one-year warranty, we only charge spare parts at cost price.
b) We will provide you with long-term support in technology. We offer you an operation manual in English.
c) We can dispatch our engineer to your company for installing and debugging machines.
d) You can also dispatch engineers to our company to inspect after the production of machines is finished. We are responsible for the training of t your engineers free of charge.
