Place of Origin:
China
Brand Name:
JWIM
Certification:
ISO9001
Model Number:
TS-150

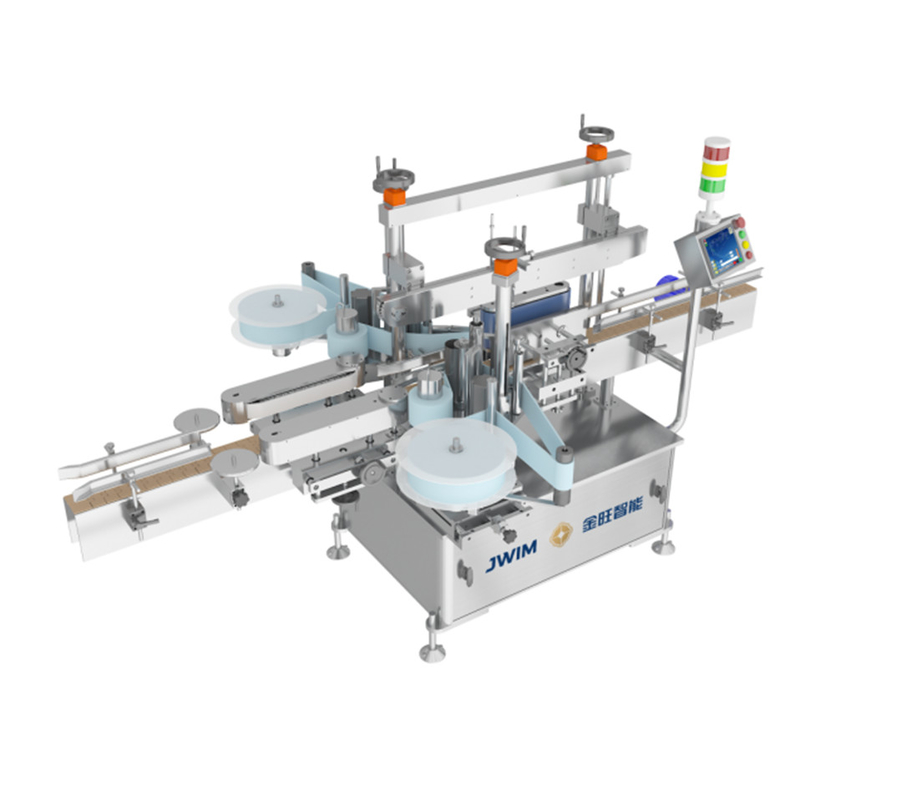

TS-150 Self-adhesive Double-sided Labeling Machine

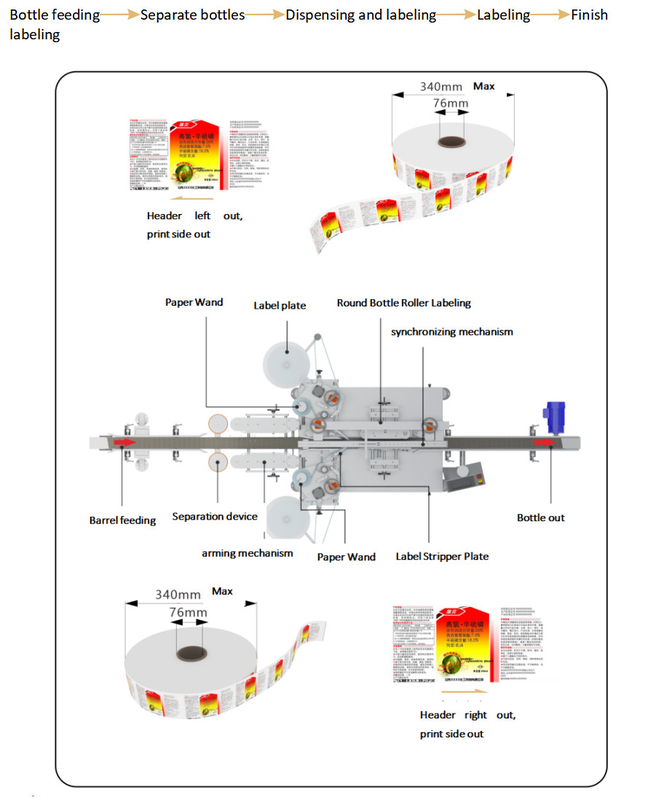

1. Introduction
Double sided self-adhesive labeling machine is an ideal equipment for fast and automatic labeling of square bottles, flat bottles and other products in pharmaceutical, chemical and other light industries. The machine has advanced functions, simple operation and compact structure. Photoelectric detection, PLC control and touch screen software operation are adopted. The conveying, bottle holding and bottle separation are stepless speed regulation, and the labeling is accurate. At the same time, it has the functions of no bottle, no labeling, automatic correction, automatic detection and so on.

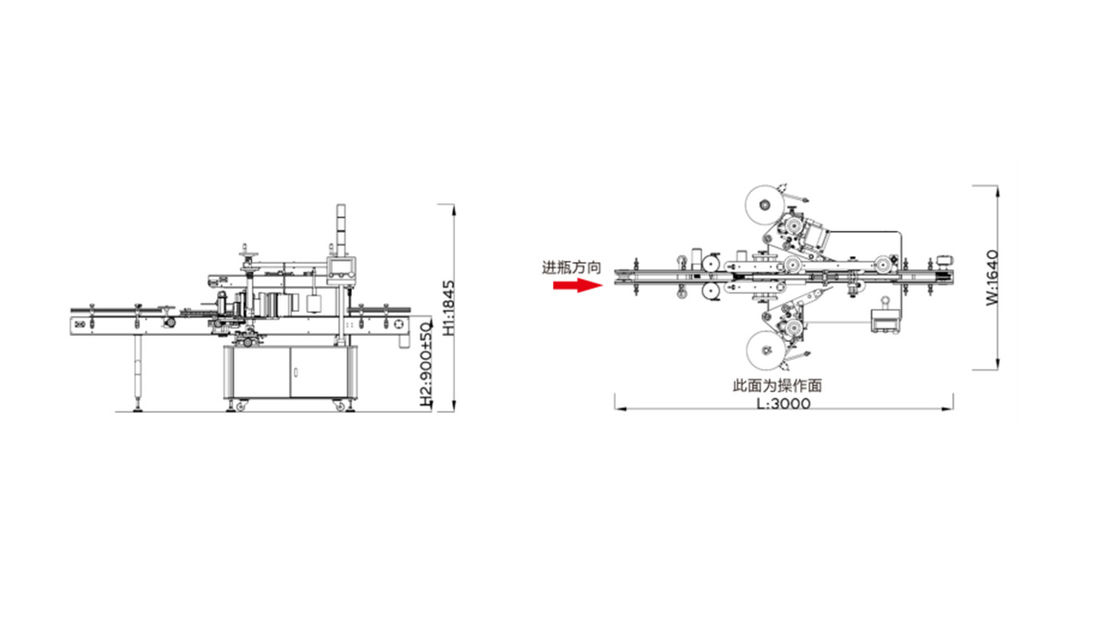

2. Machine Dimension
3. Technical Parameters
| 1 | Labeling speed |
3000-6000 BPH *Actual capacity varies according to product size, package material, material characteristics, etc. |
| 2 | Labeling precision | ±1mm *Labeling accuracy varies according to material and label material. |
| 3 | Square bottle labeling range | L 20-150mm H 20-160mm |
| 4 | Upper pressure adjustment range | 60-300mm |
| 5 | Output speed | 3~50 M/MIN |
| 6 | Label roll inner diameter | φ76mm |
| 7 | Maximum label roll outer diameter | φ340mm |
| 8 | Power supply/power | ~220V 50Hz/3.0KW |
| 9 | Overall Dimension | 3000×1550×1850mm(L×W×H) |
| 10 | Weight | ~650Kg |
4. Advantages

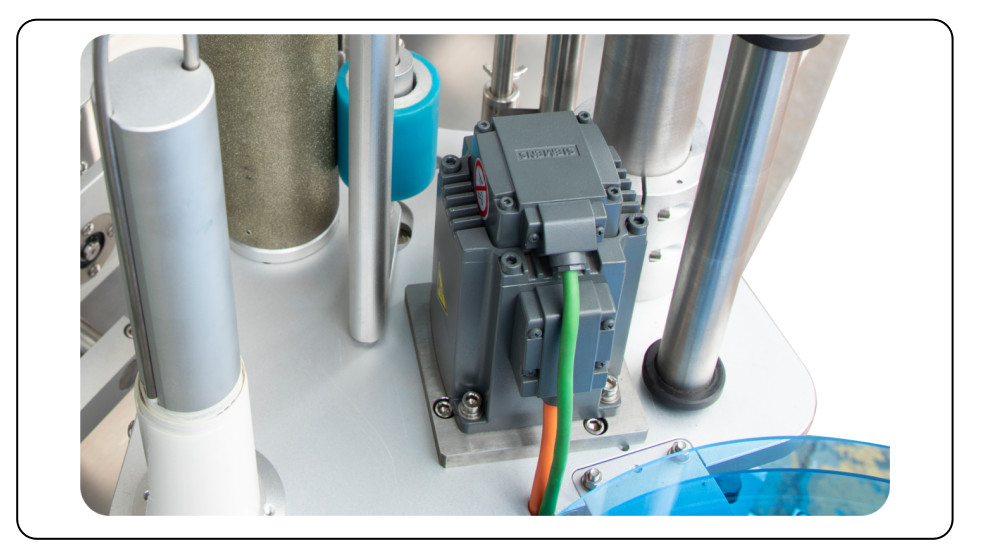

4.1 The labeling system adopts servo motor control to ensure labeling precision.

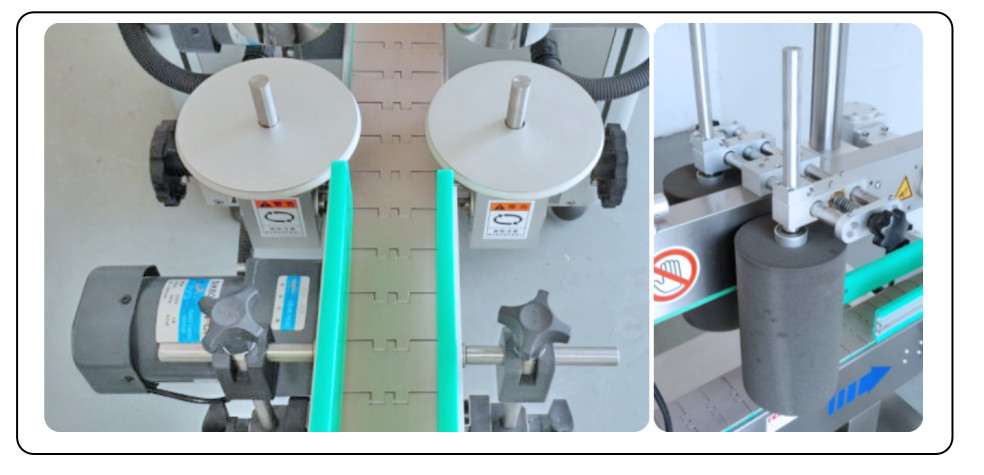

4.2 Conveyor belt, bottle separating wheel and bottle support belt are driven by separate motor and can be stepless frequency conversion speed regulation, labeling is more reliable and flexible.

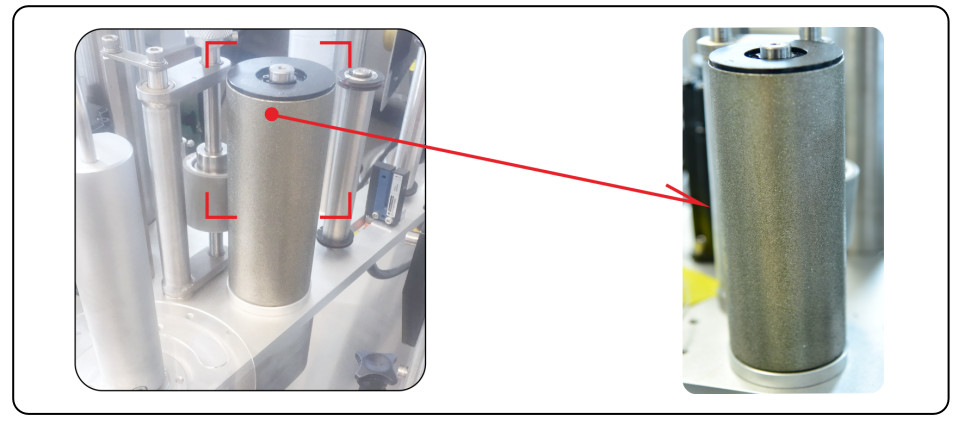

4.3 Pure alloy labeling roller does not slip, stable labeling, more wear-resistant, significantly stronger than the traditional rubber roller.
4.4 The machine's working condition and faults, there are reminder warning function, system operation, downtime and faults occur, the system will be the occurrence of the event alarm prompts.
4.5 Labeling electric eye sensitivity adjustable, different transmittance of the label backing paper, can be identified and compared and can adjust the sensitivity, the length of different labels can be optimally adjusted to ensure that the labeling is normal and labeling smooth and accurate.

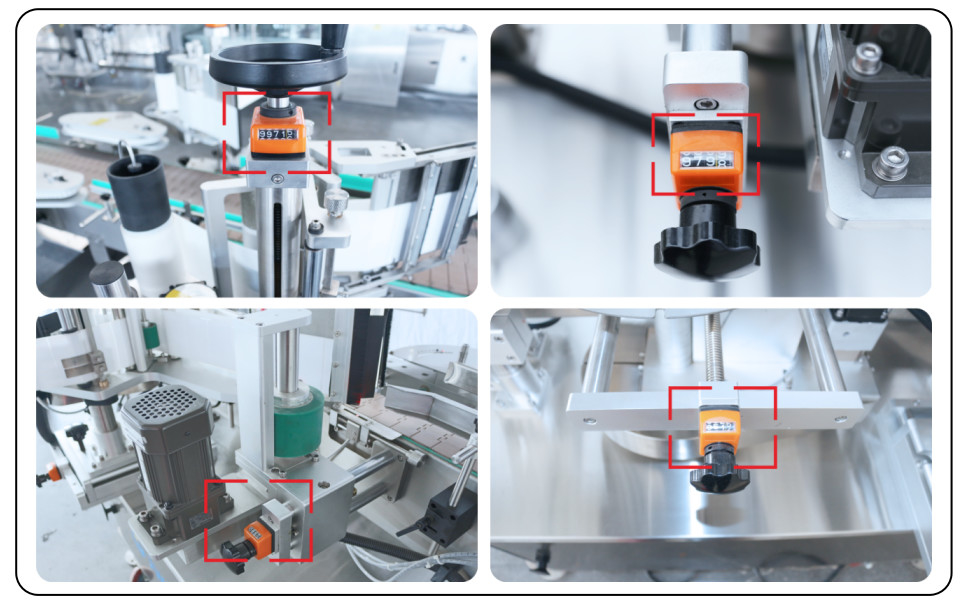

4.6 Digital adjustment handle, adjustment is more intuitive, specification replacement is faster.
