Place of Origin:
CHINA
Brand Name:
JINWANG
Certification:
CE,ISO9001,ISO18000,ISO14000
Model Number:

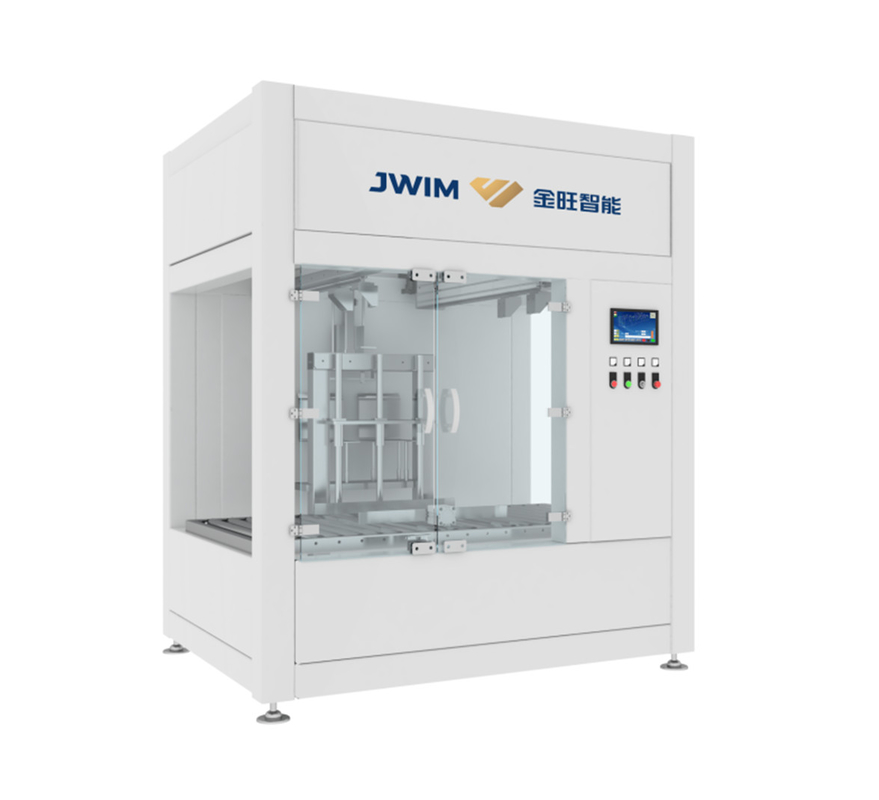

JW-TZ50 Automatic Bag Rolling Machine
JW-TZ50 Automatic Bag Rolling Machine
1.Introduction
Automatic bag rolling machine is adopting automatic positioning feeding method, which can form automatic bag tying action without stopping. It is suitable for products packed in PE bags in round drums. Adopting PLC control can be fully automatic and seamless connection with production line.

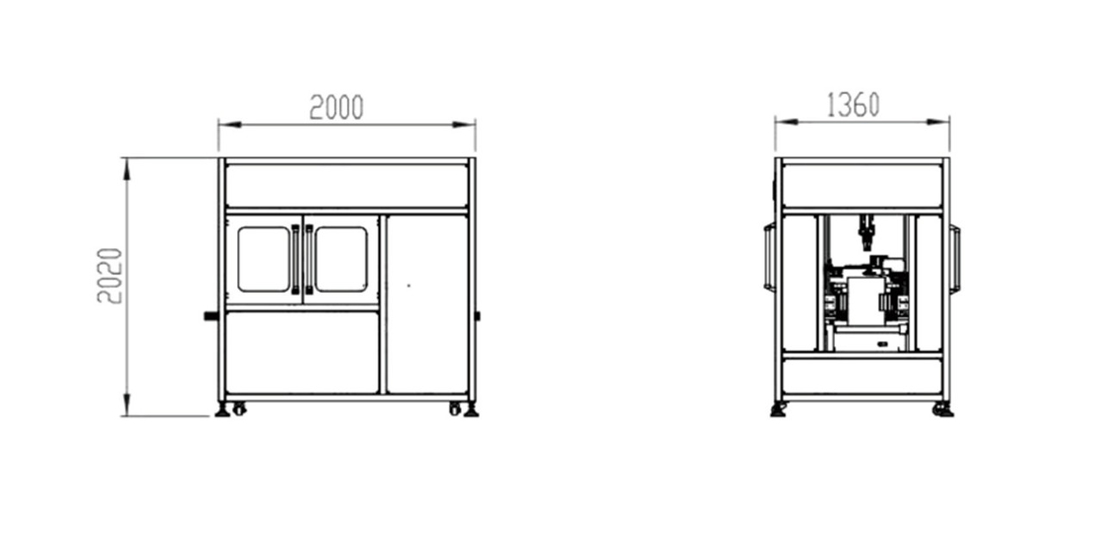

2.Equipment dimension

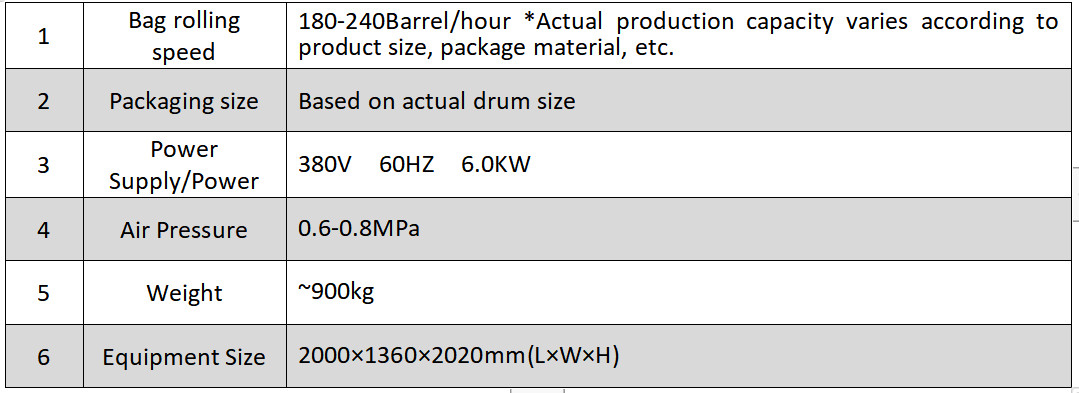

3.Technical Parameters
| 1 | Bag rolling speed | 180-240Barrel/hour *Actual production capacity varies according to product size, package material, etc. |
| 2 | Packaging size | Based on actual drum size |
| 3 | Power Supply/Power | 380V 60HZ 6.0KW |
| 4 | Air Pressure | 0.6-0.8MPa |
| 5 | Weight | ~900kg |
| 6 | Equipment Size | 2000×1360×2020mm(L×W×H) |

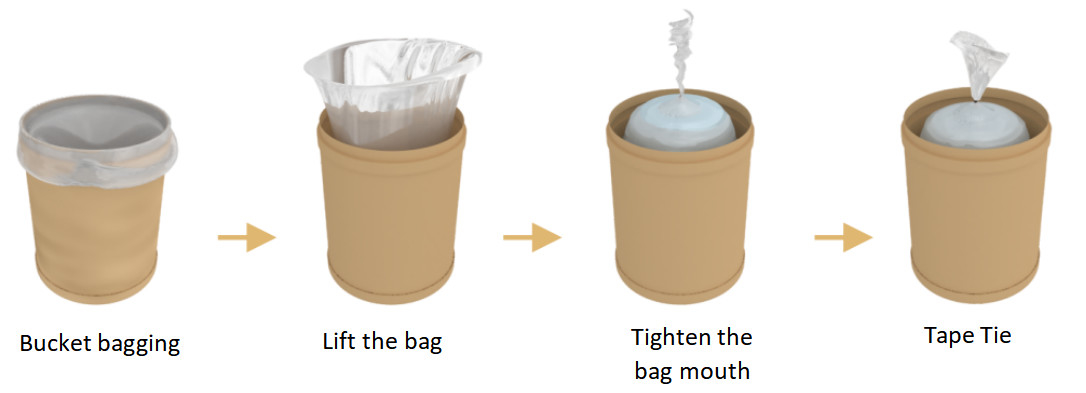

4.Work process

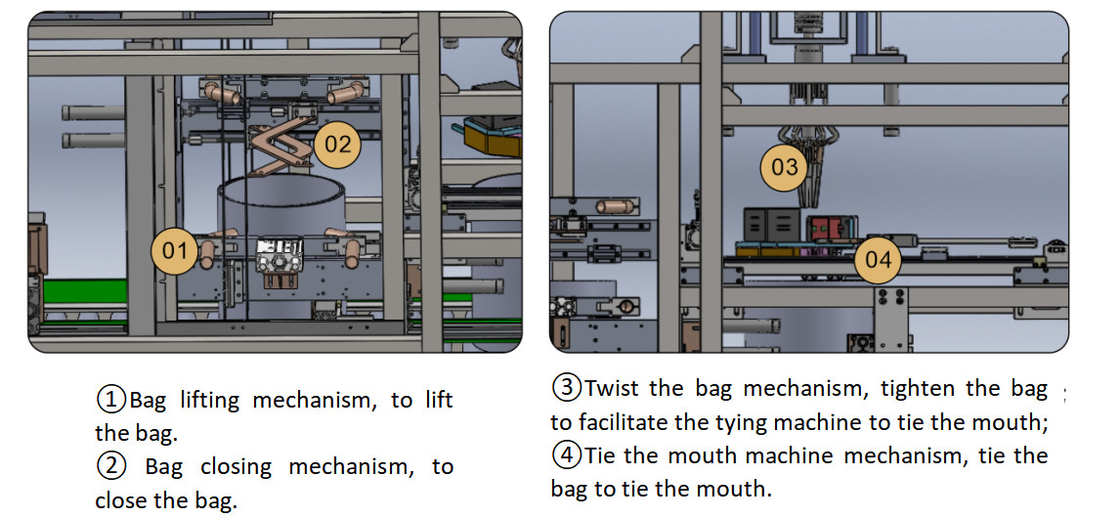

5.Illustrate
6.Advantage
6.1 Made with German technology and imported parts, electrical components and pneumatic components.
6.2 Adopting automatic positioning feeding method, it can form automatic bag tying action without stopping.
6.3 It is suitable for packing the same kind of drum size at the same time, if you need to change the drum specification, you can adjust it manually.
6.4 Rationalization design, automatic bag folding and bag tying.
6.5 Light volume, precision and durable machine parts, no vibration during operation, long life and high efficiency.
6.6 It can be used with bagging machine and other equipments of automatic packaging line.
