Name: KZ-1200D Spider Gripper Carton Packing Machine With Small Occupied Space For Improved Efficiency
Brand: Jiangsu Jinwang Intelligent Sci-Tech Co., Ltd
SKU: KZ-1200D
Price: negotiable USD
Availability: InStock

Home > products > Carton Packing Machine >

KZ-1200D Spider Gripper Carton Packing Machine With Small Occupied Space For Improved Efficiency

Improved Efficiency Carton Packing Machine

Spider Gripper Carton Packing Machine

Small Occupied Space Carton Packing Machine

Place of Origin:

CHINA

Brand Name:

JINWANG

Certification:

CE, ISO9001

Model Number:

KZ-1200D

Request A Quote

Product Details

Name:

KZ-1200D Spider Gripper Carton Packing Machine

Product Specification:

L10mm~280mm×H10mm~400mm×W10mm~100mm

Applicable Range:

Medicine, Household Products, Food Industry

Packing Speed:

≤70 Times/minute

Frame Material:

SUS304

Power:

5KW

Overload:

≤3kg (with Gripper)

External Dimension:

L2350XW1730XH2360mm

Coordinating Robot:

WSC-1200D

Weight:

1000Kg

Payment & Shipping Terms

Minimum Order Quantity

1 set

Price

negotiation

Packaging Details

wooden cases

Delivery Time

15-90 work days

Payment Terms

L/C, T/T

Supply Ability

1 Osets per month

RELATED PRODUCTS

Contact Now

Product Description

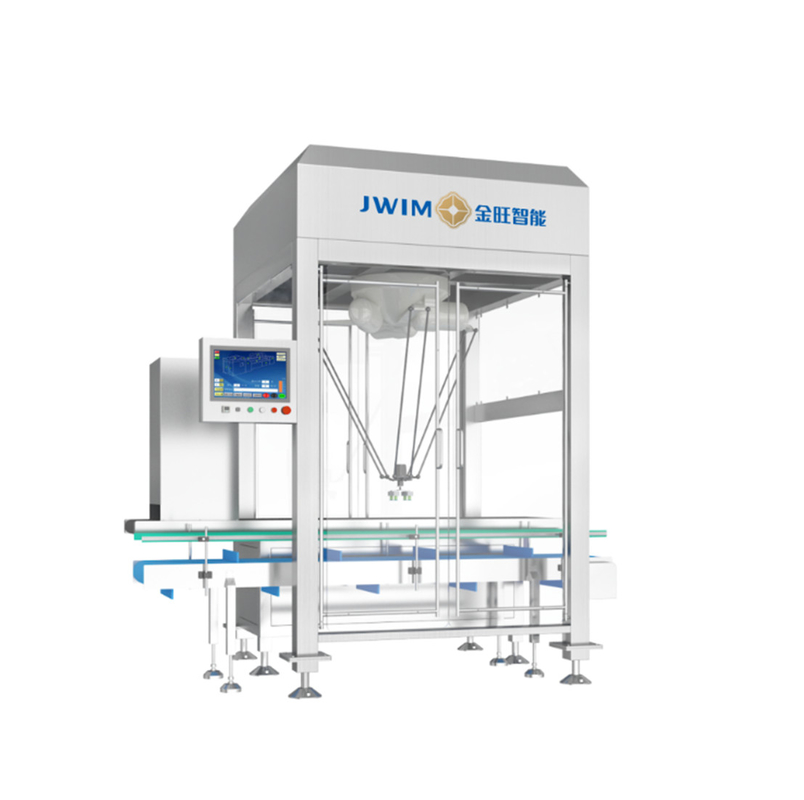

KZ-1200D Spider Gripper Carton Packing Machine

1. Introduction
Spider Gripper Carton Packing Machine is self-designed high-speed flexible parallel robot, it ensures that the product does not fall in the process of high-speed grab and handling, It is widely used in automatic identification, sorting, handling and carton packing of bagged products. The machine structure is nicely designed, compact, spare parts less, easy maintenance and repair and low maintenance cost. Occupies a small space, can place in a small space to work to improve the space efficiency. The control mode is hand-held device + standard control button + signal switch, simple operation and convenient management.

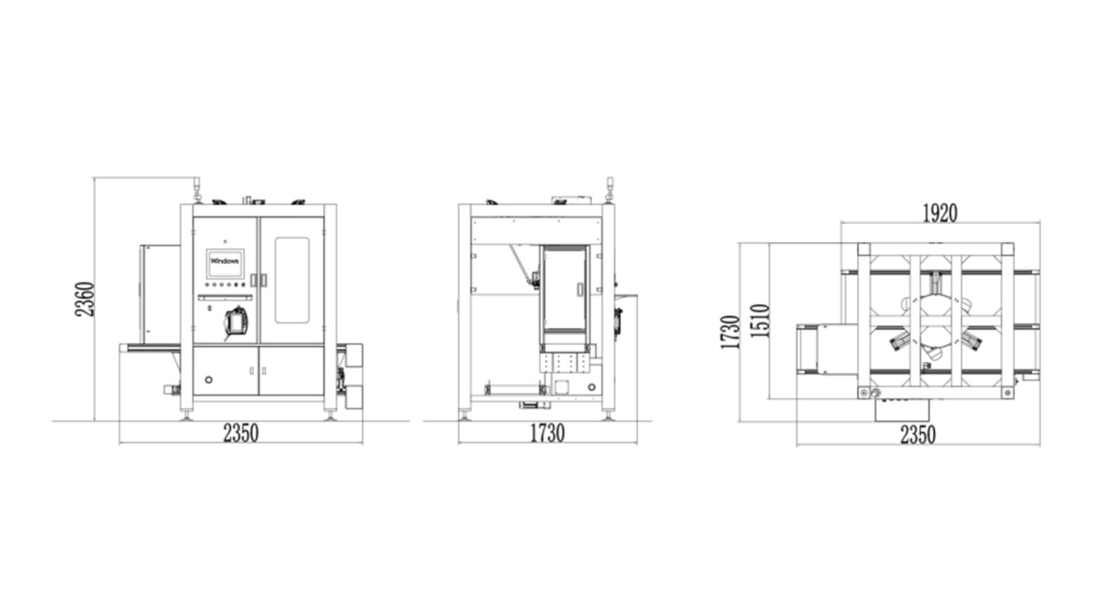

2.Equipment Dimension

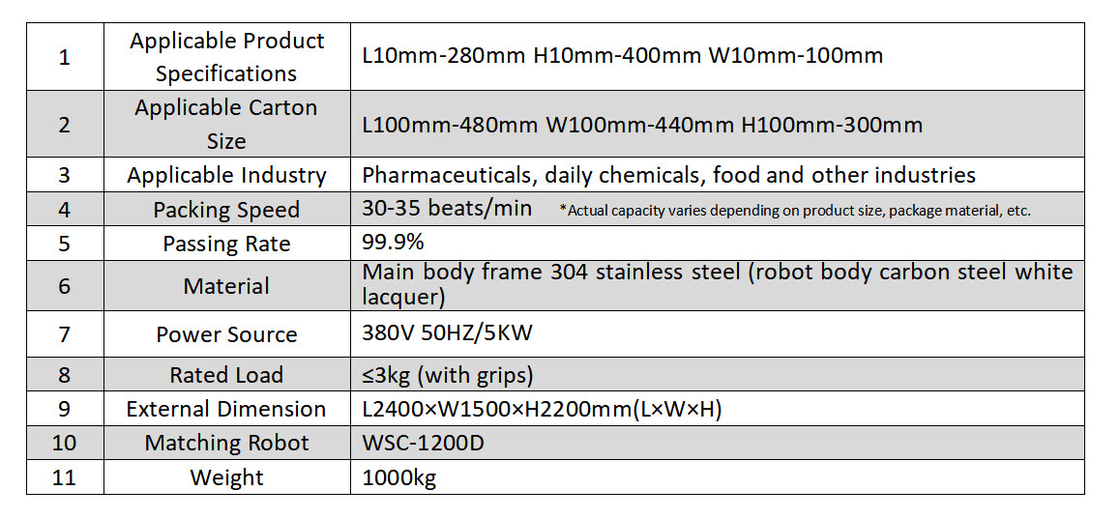

3.Technical Parameters

1	Applicable Product Specifications	L10mm-280mm H10mm-400mm W10mm-100mm
2	Applicable Carton Size	L100mm-480mm W100mm-440mm H100mm-300mm
3	Applicable Industry	Pharmaceuticals, daily chemicals, food and other industries
4	Packing Speed	30-35 beats/min *Actual capacity varies depending on product size, package material, etc.
5	Passing Rate	99.9%
6	Material	Main body frame 304 stainless steel (robot body carbon steel white lacquer)
7	Power Source	380V 50HZ/5KW
8	Rated Load	≤3kg (with grips)
9	External Dimension	L2400×W1500×H2200mm(L×W×H)
10	Matching Robot	WSC-1200D
11	Weight	1000kg

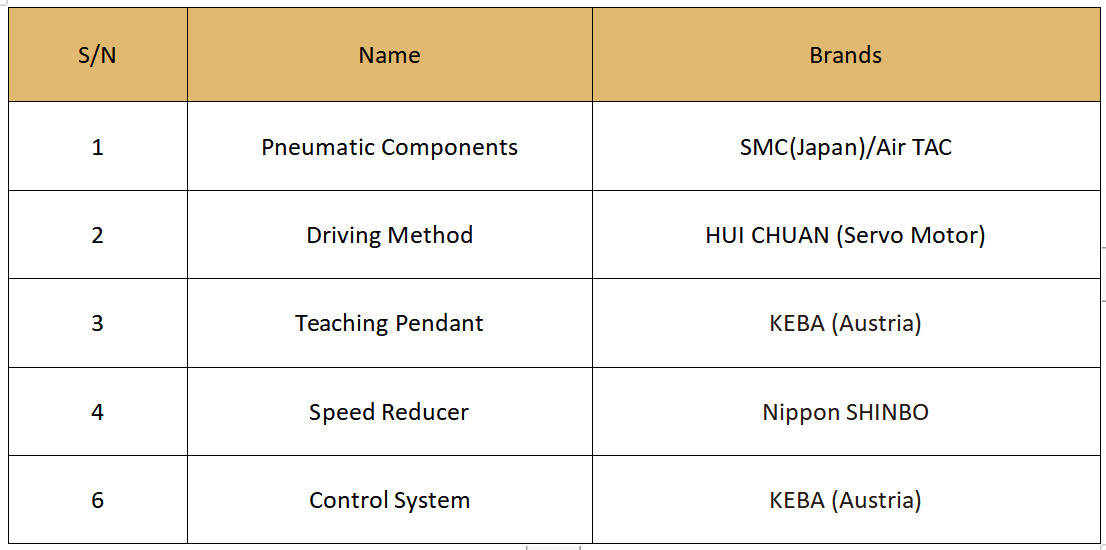

4.Electrical Configuration

S/N	Name	Brands
1	Pneumatic Components	SMC(Japan)/Air TAC
2	Driving Method	HUI CHUAN (Servo Motor)
3	Teaching Pendant	KEBA (Austria)
4	Speed Reducer	Nippon SHINBO
6	Control System	KEBA (Austria)

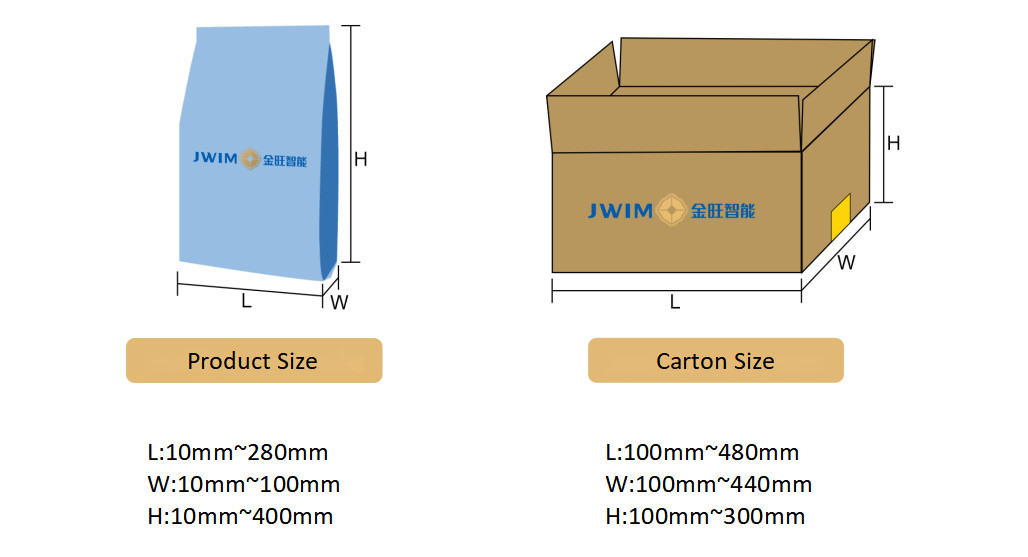

5. Applicable Specification

6. Applicable Specification
