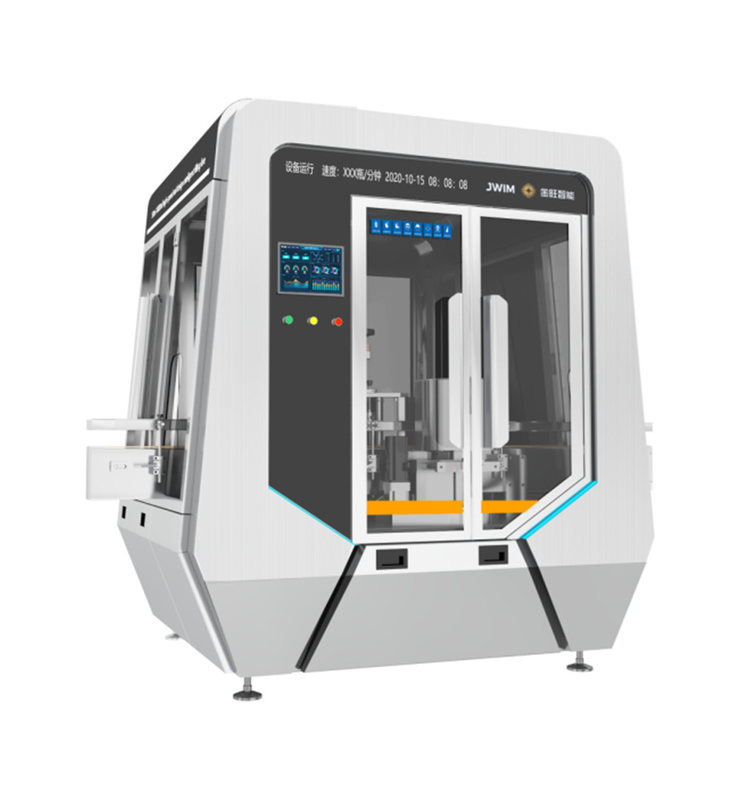

TN-150DL High Speed Positioning Labeling Machine
1. Introduction
TN-150DLH high-speed positioning labeling machine adopts programmable control, touch man-machine interface and servo driven labeling. The whole machine is easy and intuitive to operate, and has many help functions and fault display functions. It is suitable for automatic labeling of self-adhesive labels of various circular containers.

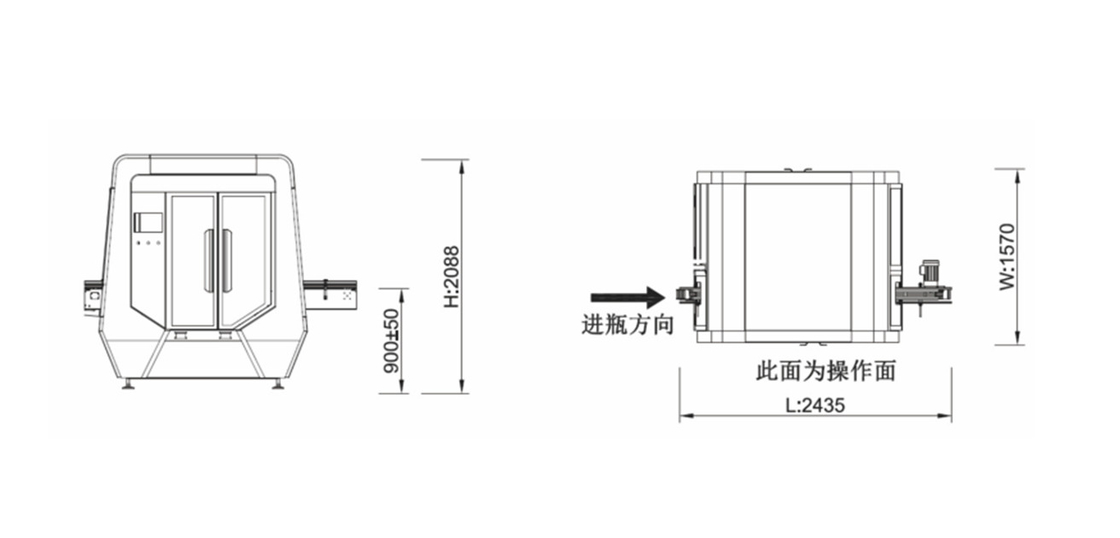

2.Machine Dimension
3.Technical Parameters
| 1 | Labeling speed |
50ml: 7000BPH 500ml: 5000BPH 1000m: 4000BPH *Actual capacity varies according to product size, package material, material characteristics, etc. |
| 2 | Bottle Diameter | Φ30-95mm |
| 3 | Label size | H 20-180mm L 50-320mm |
| 4 | Labeling precision | ±1mm 98% *Labeling accuracy varies according to material and label material. |
| 5 | Applicable Label |
Label roll inner diameter Φ76.2mm Maximum label roll outer diameter Φ340mm Label backing width 16~200mm |
| 6 | Power supply/power | ~220V 50Hz/2KW |
| 7 | Dimension of the whole machine | 2435×1570×2088mm(L×W×H) |
4.Electrical Configuration
| No. | Name | Brand |
| 1 | PLC | Schneider |
| 2 | Touch Screens | Schneider |
| 3 | Inverter | Schneider |
| 4 | Servo System | Schneider |
| 5 | Fiber Optic Amplifier | Sick |
| 5 | Switching Power Supply | Schneider |
5.Advantage

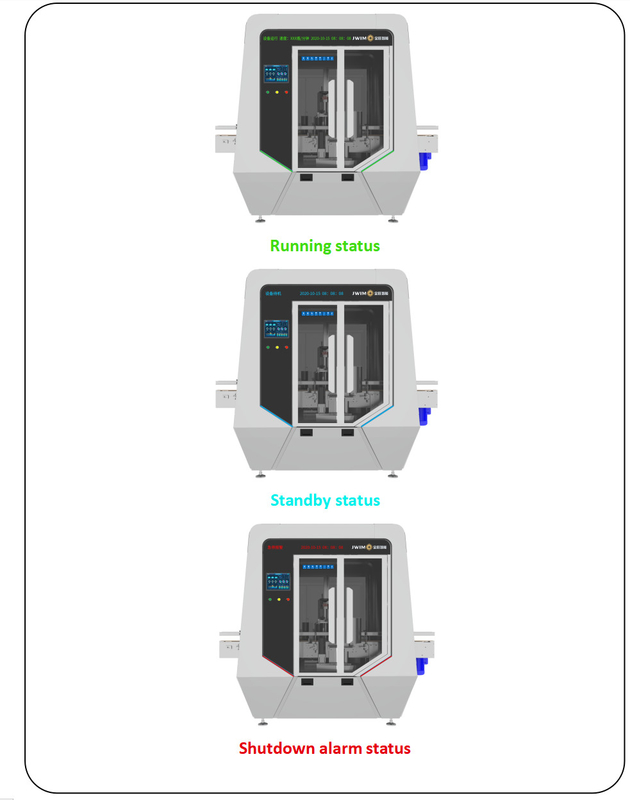

5.1 Data: the whole line running status and data are presented in real time, which is clear at a glance, and the production data are dynamically displayed in real time, which is convenient for production management. The equipment is equipped with three-color light band, green running, blue standby, red shutdown alarm.

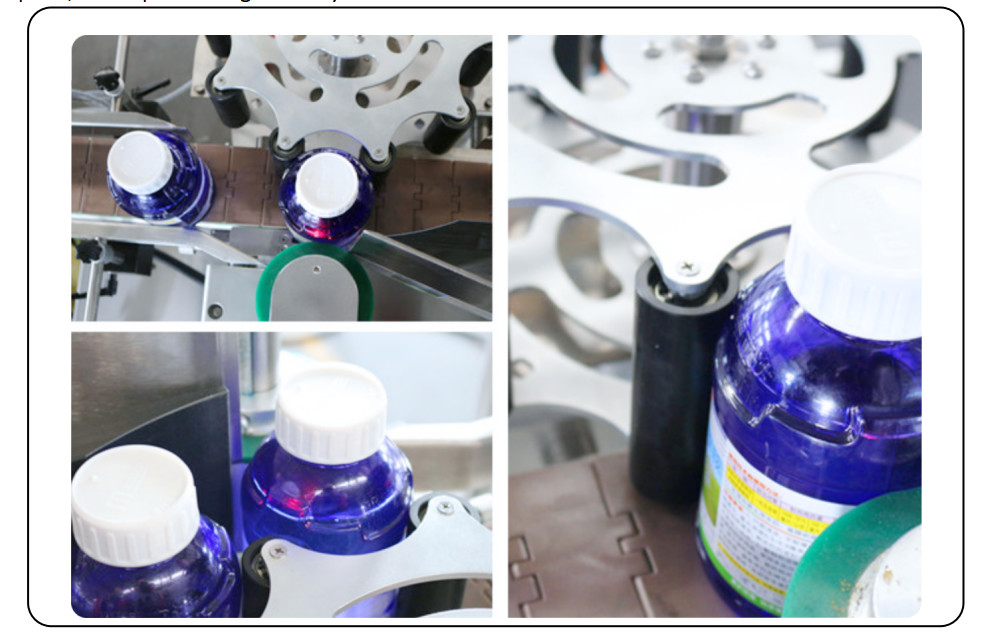

5.2 The latest positioning labeling mechanism, without the need for front-channel bottle separation speed, bottle positioning accuracy.

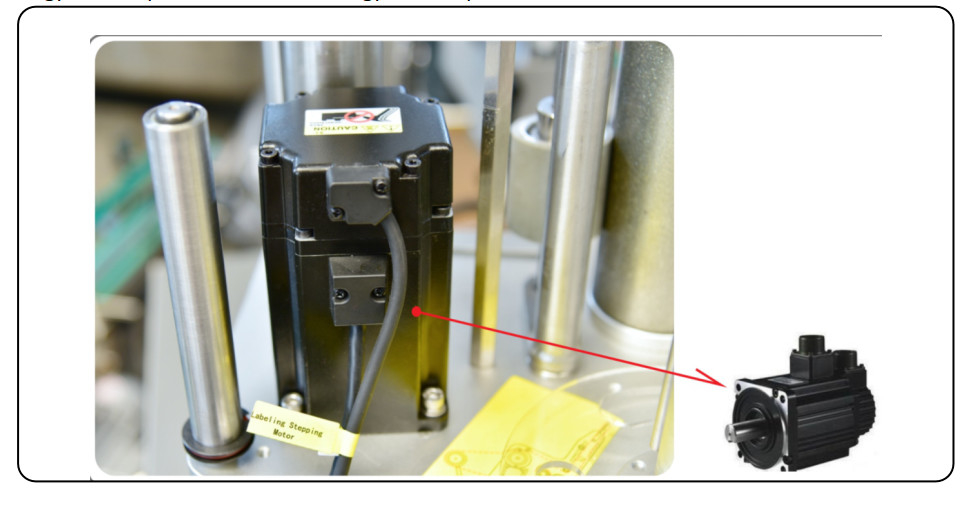

5.3 Adopting France Schneider Electric integrated servo system, high efficiency, stable and low energy consumption, 20% lower energy consumption than other brands .

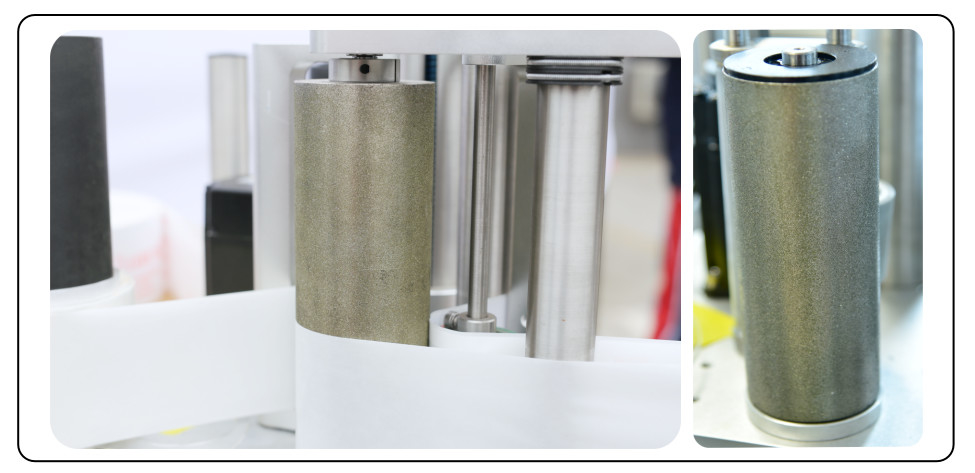

5.4 Pure alloy label feeding roller: no slipping, stable label feeding, more wear-resistant, significantly stronger than traditional rubber roller.

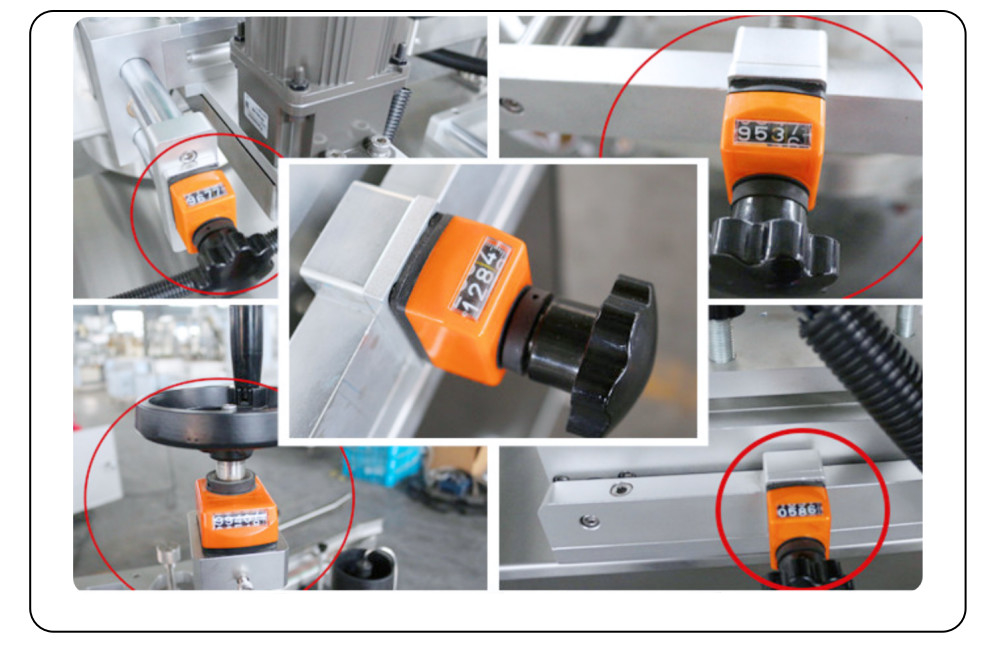

5.5 Digital adjusting handle, more intuitive adjustment, faster specification replacement.
5.6 With memory storage program function, can store multiple sets of parameters and can be named for different programs. Replacement of different specifications or different production capacity, only need to adjust different parameters can be, do not have to adjust again to greatly improve work efficiency.

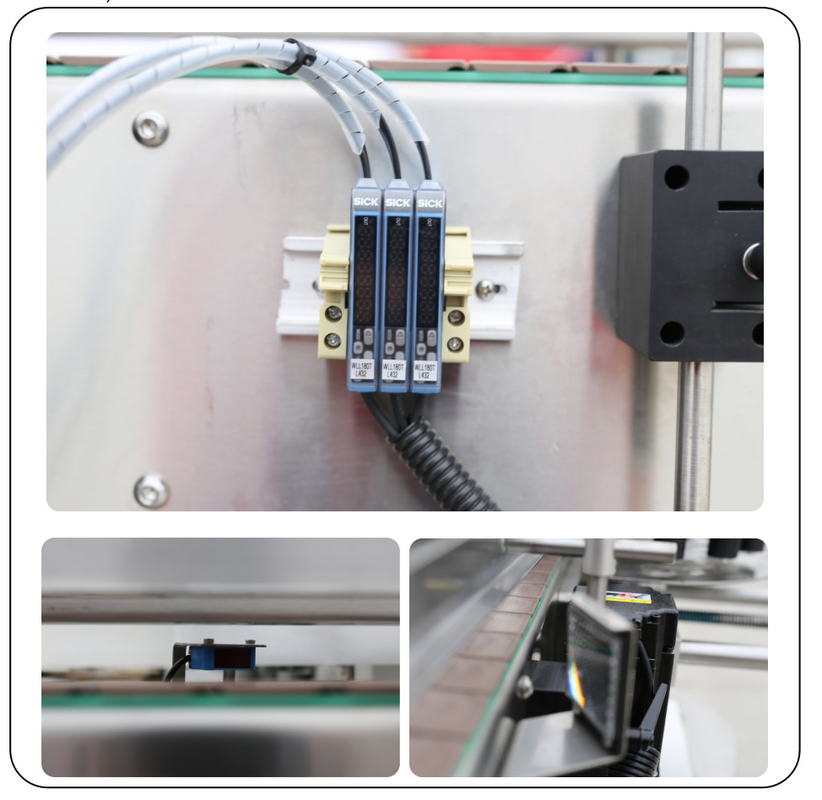

5.7 High-precision photoelectricity, all the detection photoelectricity are used high specification brand models, to ensure that the whole machine is stable and reliable.
6.Support and Services:
Our technical support and services for the Machine are designed to provide the most comprehensive assistance for our customers. Our team of experienced engineers and technicians are available to provide assistance with installation, maintenance, troubleshooting, and repair services.
We offer in-house training on the operation and maintenance of the machine to ensure that our customers can get the most out of their purchase. Additionally, we provide online support through our website, which includes FAQs, product manuals, and other helpful resources.
If you ever have any questions or concerns about the Pesticide Filling Machine, our team of experts are available to help. We believe that customer satisfaction is our top priority, and we strive to provide the best technical support and services possible.
7.Packing and Shipping:
Machine will be securely packaged in a cardboard box to protect it during shipping. We will use a reliable carrier to ship the product to the customer's address.
