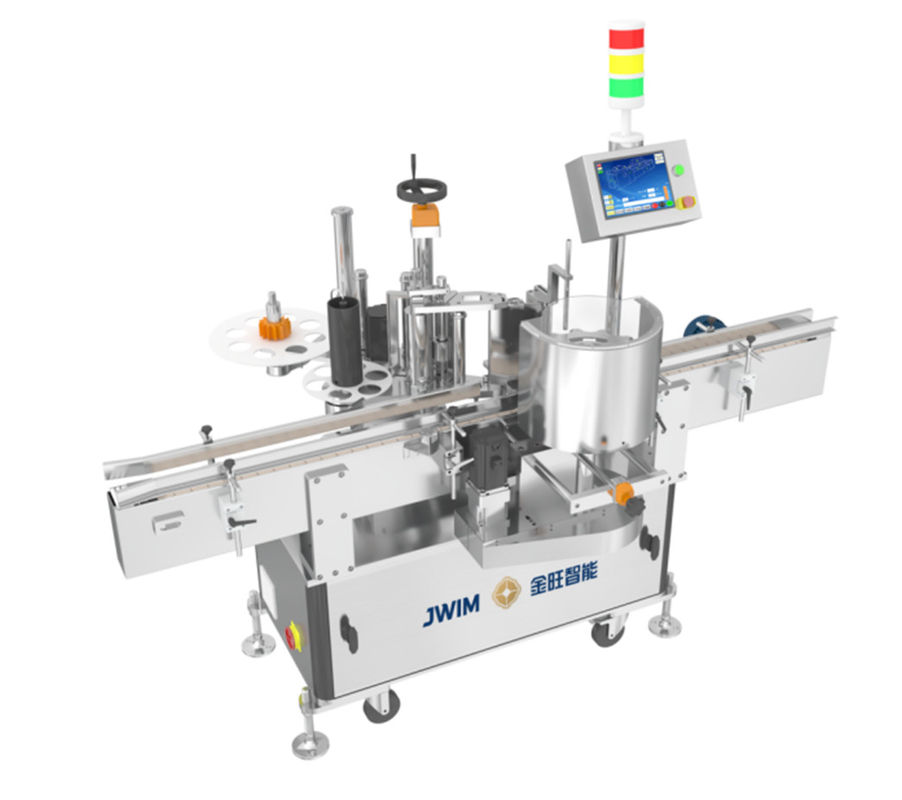

TN-150DL High Speed Positioning Labeling Machine
1.Introduction
TN-150DL intelligent self-adhesive labeling machine adopts programmable control, touch human-machine interface, servo-driven labeling, the whole machine is easy to operate, intuitive, and has a fault display function.
It is suitable for automatic labeling of self-adhesive labels of various round containers

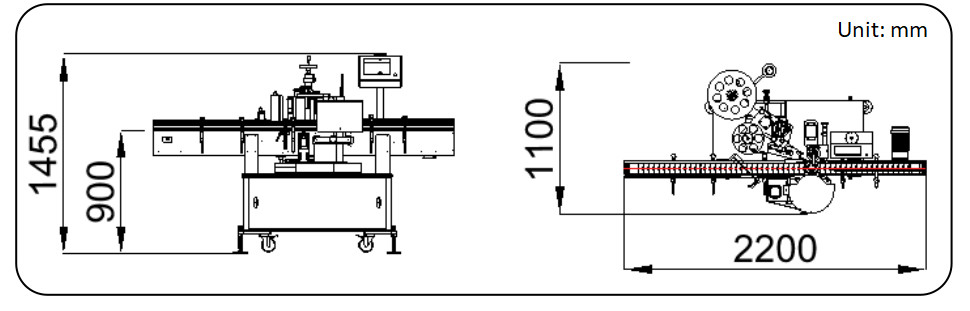

2.Machine Dimension
3.Technical Parameters
| 1 | Labeling speed |
50ml: 7000BPH 500ml: 5000BPH 1000m: 4000BPH *Actual capacity varies according to product size, package material, material characteristics, etc. |
| 2 | Bottle Diameter | Φ30-95mm |
| 3 | Label size | H 20-180mm L 50-320mm |
| 4 | Labeling precision | ±1mm 98% *Labeling accuracy varies according to material and label material. |
| 5 | Applicable Label |
Label roll inner diameter Φ76.2mm Maximum label roll outer diameter Φ340mm Label backing width 16~200mm |
| 6 | Power supply/power | ~220V 50Hz/2.0KW |
| 7 | Dimension of the whole machine | 2200×1100×1455mm(L×W×H) |
| 8 | Weight | ~328Kg |
4.Electrical Configuration
| No. | Name | Brand |
| 1 | PLC | Schneider |
| 2 | Touch Screens | Schneider |
| 3 | Inverter | Schneider |
| 4 | Servo System | Schneider |
| 5 | Fiber Optic Amplifier | Sick |
| 6 | Switching Power Supply | Schneider |

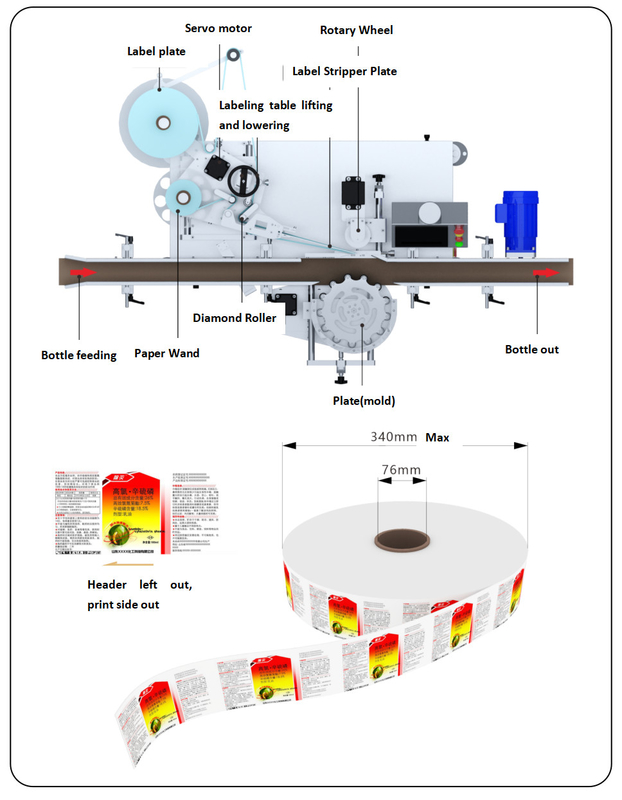

5.Working Process
6.Advantage

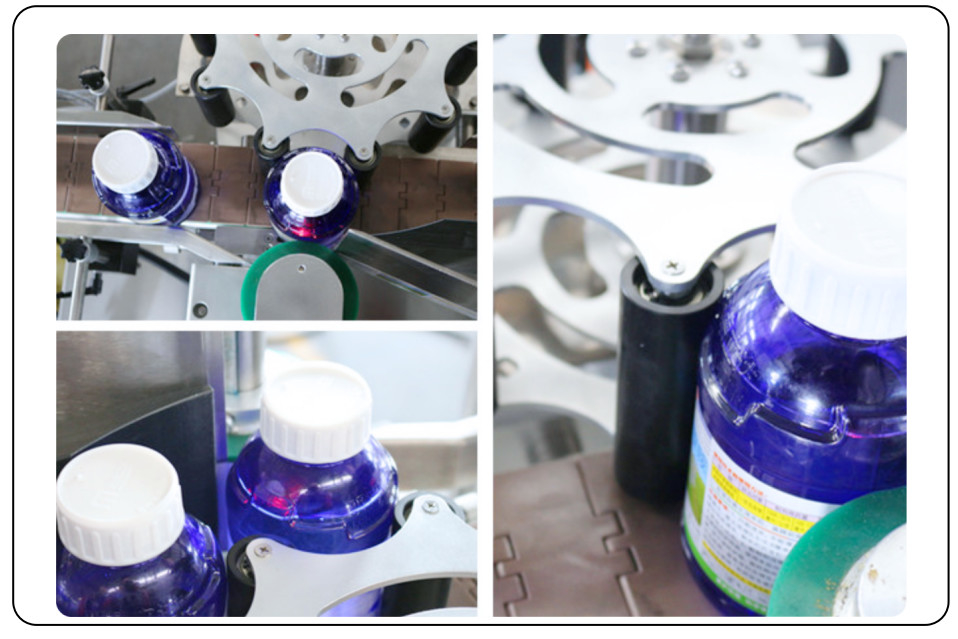

6.1 The latest positioning labeling mechanism, without the need for front-channel bottle separation speed, bottle positioning accuracy.

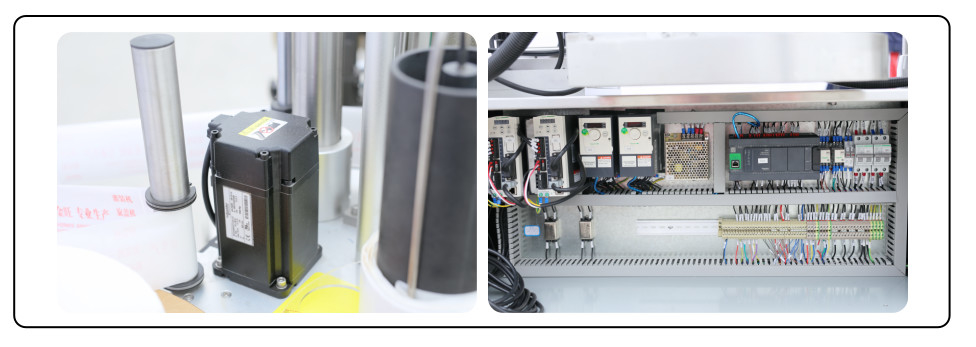

6.2 Adopting France Schneider Electric integrated servo system, high efficiency, stable and low energy consumption, 20% lower energy consumption than other brands .

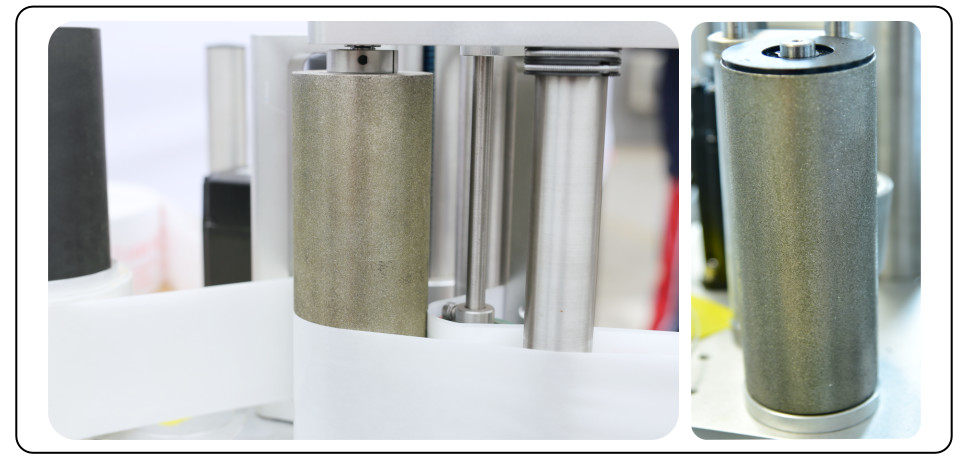

6.3 Pure alloy label feeding roller: no slipping, stable label feeding, more wear-resistant, significantly stronger than traditional rubber roller.

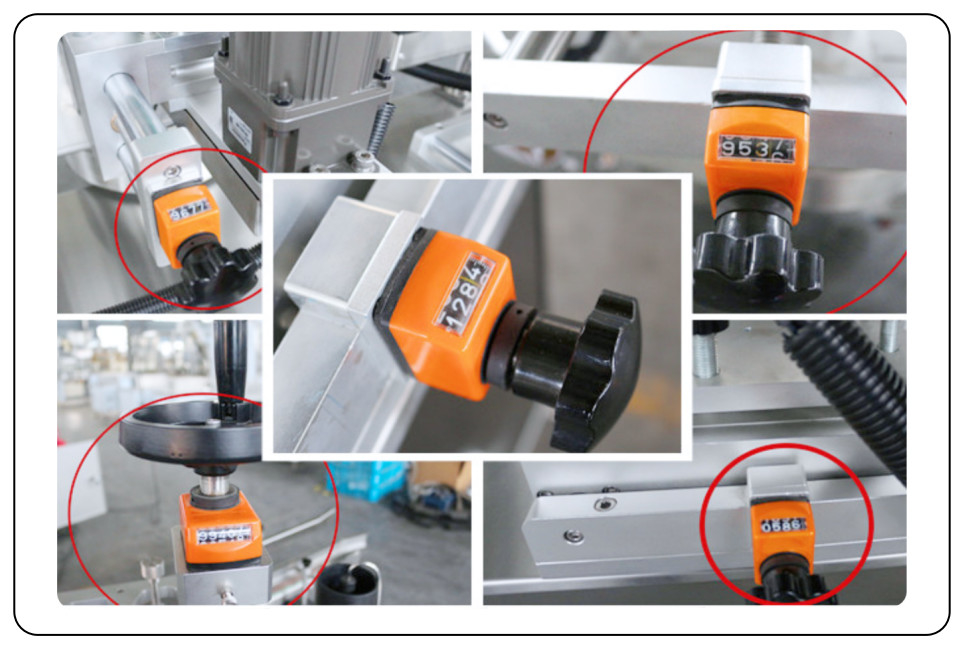

6.4 Digital adjusting handle, more intuitive adjustment, faster specification replacement.
6.5 With memory storage program function, can store multiple sets of parameters and can be named for different programs. Replacement of different specifications or different production capacity, only need to adjust different parameters can be, do not have to adjust again to greatly improve work efficiency.

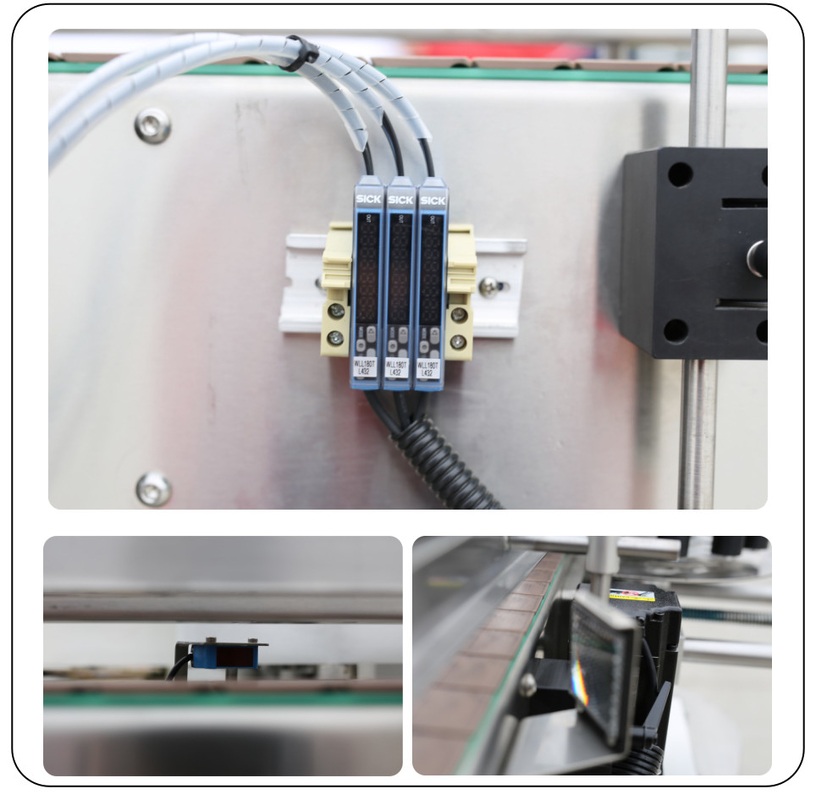

6.6 High-precision photoelectricity, all the detection photoelectricity are used high specification brand models, to ensure that the whole machine is stable and reliable.
7.Support and Services:
Our technical support and services for the Labeling Machine are designed to provide the most comprehensive assistance for our customers. Our team of experienced engineers and technicians are available to provide assistance with installation, maintenance, troubleshooting, and repair services.
We offer in-house training on the operation and maintenance of the machine to ensure that our customers can get the most out of their purchase. Additionally, we provide online support through our website, which includes FAQs, product manuals, and other helpful resources.
If you ever have any questions or concerns about the Labeling Machine our team of experts are available to help. We believe that customer satisfaction is our top priority, and we strive to provide the best technical support and services possible.
8.Packing and Shipping:
The Labeling Machine will be securely packaged in a cardboard box to protect it during shipping. We will use a reliable carrier to ship the product to the customer's address.
