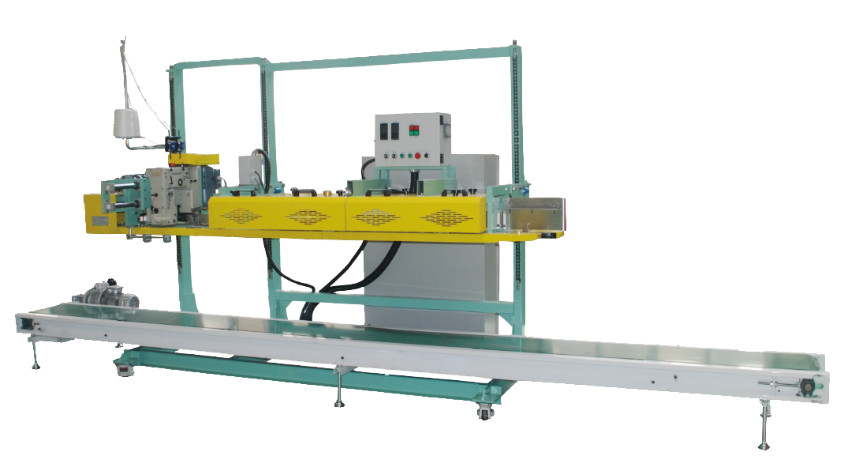

JW-BZR-3 Woven Bag Heat Sealing And Folding Sewing Machine
JW-BZR-3 Woven Bag Heat Sealing And Folding Sewing Machine
1.Introduction
This unit uses a controller, motor frequency conversion speed controller, and heating system detection device to form the main body of the control system to achieve coordinated control of the entire heat sealing machine. The system has heating system detection, automatic alarm shutdown, fault display functions, and has complete fault protection and chain shutdown functions. The entire operating system is simple to use, has complete functions, and is easy to inspect and maintain.
The whole machine consists of an automatic introduction device, an automatic heat sealing device, an automatic folding and sewing device and an on-site control cabinet. The heat-sealing inner film and outer bag hemming and seaming are integrated to effectively improve work efficiency and reduce labor costs.
2. Heat Sealing Suture Workflow
Bag mouth cleaning → heat sealing of the inner bag (4 sets of heating block heating: PTFE sealing tape so that the heating block and the bag are not in direct contact with the bag to protect the bag appearance does not adhere to the heating block) → pressure roller pressing → bag mouth folding →Bag sewing machine: outer bag sewing
3. Technical Parameters
| 1 | Sealing Speed |
10-15m/min *Actual production capacity varies depending on product size, packaging material, material characteristics, etc. |
| 2 | Heating Block Power | 0.5×8KW |
| 3 | Sealing Machine Power | 0.55KW |
| 4 | Sewing Machine Power | 0.4KW |
| 5 | Bag Cleaning Power | 0.55KW (optional) |
| 6 | Total Power | About 5.5KW |
| 7 | Equipment Size | 3153×1090×2052mm (L×W×H) |
| 8 | Weight | About 650kg |
| 9 | Suturing Machine Head | GS-7C |
| 10 | Folding Method | Positive hem |
| 11 | Sealing Height | 800～1700mm (from the ground) |
| 12 | Sealing Temperature | 0～400℃ |
| 13 | Scope of Application | Woven (coated) bag, the PE film inside the bag is heat-sealed, and the outer bag is hemmed and sewn. |
| 14 | Packaging Bag Requirements |
1. The melting point of the outer bag is 140℃-150℃, and the melting point of the inner bag is 100℃ (the temperature difference between the inner and outer bags is 30-50℃ or more) 2. The distance from the material to the top of the bag mouth should be no less than 250mm. 3. The tops of the inner PE bag and the outer bag must be flush and glued together. |
4. Electrical Configuration
| SN | Name | Brand |
| 1 | Programmable ControllersPLC | Schneider/Omron |
| 2 | Frequency Converter | Schneider/Omron |
| 3 | Breaker | Schneider |
| 4 | Switching Power Supply | Schneider |
| 5 | AC Contactor | Schneider |
| 6 | Thermal Relay | Schneider |
| 7 | Intermediate Relay | Schneider |
| 8 | Optoelectronic System | Omron |
| 9 | The Electromagnetic Valve | Festo/SMC |
| 10 | Thermal Drive Motor | Nord |
| 11 | Sewing Machine Drive Motor | Nord |
