Place of Origin:
CHINA
Brand Name:
JINWANG
Certification:
CE,ISO9001,ISO18000,ISO14000
Model Number:
Fully Automatic Tape Sealing Machine

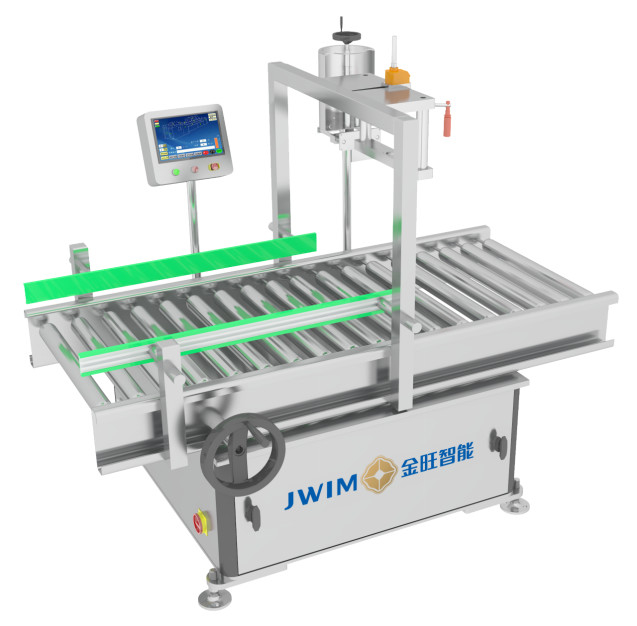

120-250 BPH Fully Automatic Tape Sealing Machine
1.Introduction

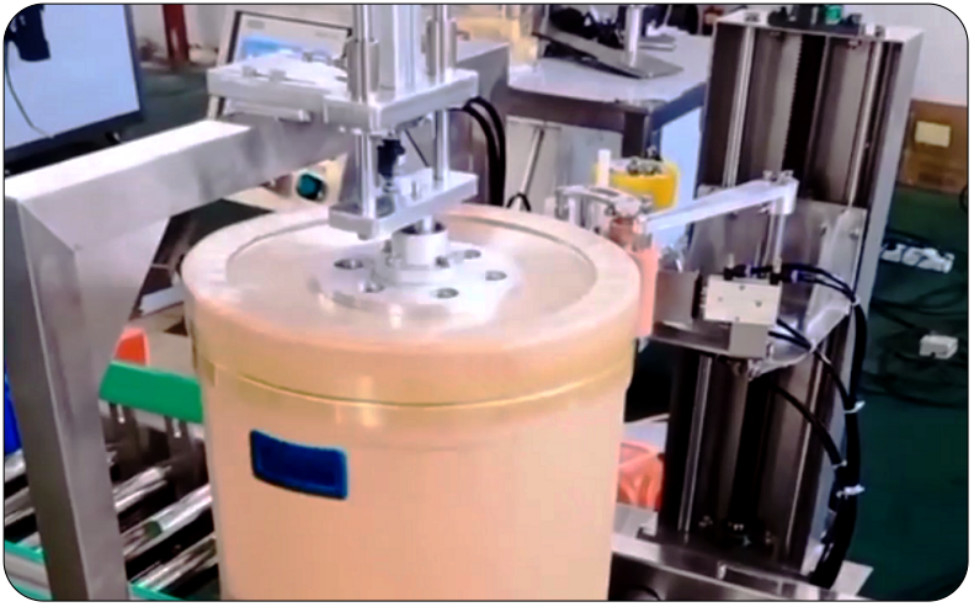

The tape barrel sealing machine uses a rotating tray at the bottom of the barrel and a pressure wheel to control the application of tape for sealing. Suitable for products packaged in cardboard barrels, plastic barrels, etc. Using PLC control, it can be fully automatically and seamlessly connected with the production line.
2.Technical Parameters
| 1 | Can Sealing Speed | 120-250 barrels/hour *Actual production capacity may vary depending on product size, packaging material, etc. |
| 2 | Applicable Barrel Type | Can be customized according to customer sample bucket |
| 3 | Power | AC 220V/380v 50Hz 3.0KW |
| 4 | Working Pressure | 0.6-0.8MPa |
| 5 | Air Consumption | 400L/min |
| 6 | Weight | 400kg |
| 7 | Equipment Size |
1700×1000×1500mm (L×W×H) *The height of the drum from the ground is 700-800mm, which can be customized as required |
| 8 | Effective Width of Roller |
550mm |
3. Equipment Advantages
3.1. Reasonable and stable structure, convenient and fast, high production efficiency.
3.2. Food-grade silicone pressure wheel with good wear resistance.
3.3. The tape wrapping structure is simple and the tape can be quickly adjusted and replaced.
3.4. It adopts PLC control system and touch screen interface operation, which is simple and clear to use.
3.5. All electrical appliances and pneumatic components of the machine are produced by well-known domestic and foreign manufacturers, with reliable and stable quality.
