Place of Origin:
CHINA
Brand Name:
JINWANG
Certification:
CE,ISO9001,ISO18000,ISO14000
Model Number:

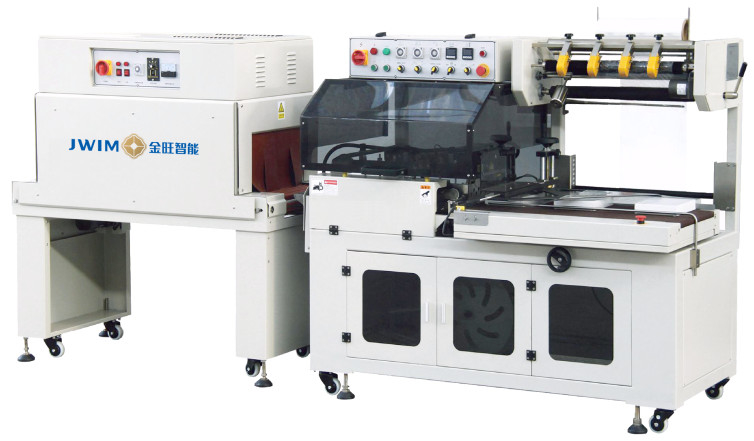

GPL-5560CI+GPS-5030LW Fully Automatic Edge Sealing Shrink Packaging Machine
GPL-5560CI+GPS-5030LW Fully Automatic Edge Sealing Shrink Packaging Machine
1.Introduction
The fully automatic edge sealing shrink packaging machine is a sealing and cutting packaging machine developed and produced for product packaging of various specifications that automatically seals, cuts and shrinks the film. The whole machine is equipped with a PLC program system and uses photoelectricity to automatically detect the product. The product automatically adjusts the feeding length, automatically seals, cuts and shrinks the product, and the detection switch controls the motor to automatically roll up the waste film.
This achieves the characteristics of unmanned automatic coating. The machine has high working efficiency and is suitable for color boxes, medicine, daily chemicals, food and other industries for different product sizes.
2.Technical Parameters
|
Model
|
GPL-5560CI |
GPS-5030LW |
| Available Membranes | POF,PE | POF |
| Packaging Speed | 3~35pcs/min | 20~80pcs/min |
| Product Packaging Size |
W+H≤550, H<230, L≥110mm |
/ |
| Knife Size, Oven Cavity Size | Cross blade: 610mm | Length: 1500mm Height: 500mm Height: 300mm |
| Maximum Temperature | 280°C | 200°C |
| Single/3 Phase, Voltage, Frequency | Three-phase 220V/380V 50/60HZ | Three-phase 220V/380V 50-60Hz |
| Power | 3KW | 16KW |
| Maximum Current | 6.5A | 25A |
| Air Pressure | 0.6MPa~0.85MPa | ⁄ |
| Countertop Height | 850+30mm | 850+30mm |
| Equipment Size | Length: 1950mm Width: 1085mm Height: 1630mm | Length: 1850mm Width: 1095mm Height: 1325mm |
| Equipment Weight | 550kg | 650kg |
3. Electrical Configuration
| S/N | Name | Brand |
| 1 | Motor | Taibang, Tianyang |
| 2 | PLC | Simens |
| 3 | Thermostat | Omron |
| 4 | Time Relay | Lzumi |
| 5 | Photoelectric Switch | Bonner |
| 6 | Pneumatic Components | Airtac |
4. Equipment Advantages

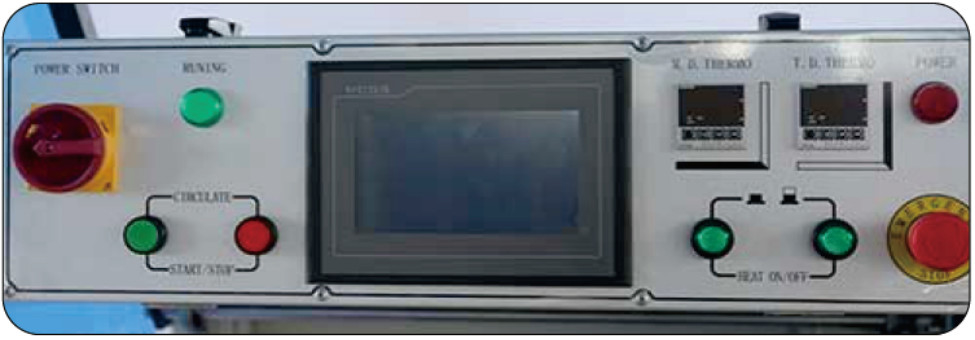

4.1 Smart touch display
Using the color touch screen control panel, setting and adjusting parameters is quick and easy, and it only takes a few minutes to learn and use.

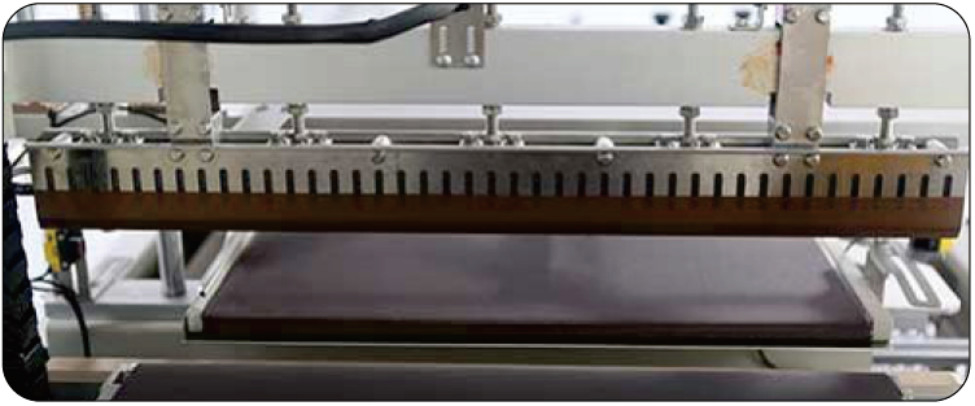

4.2 Constant temperature sealing and cutting knife
The sealing knife is coated with high-temperature-resistant material. The knife does not stick to the film or break, and the sealing line is thin and firm.

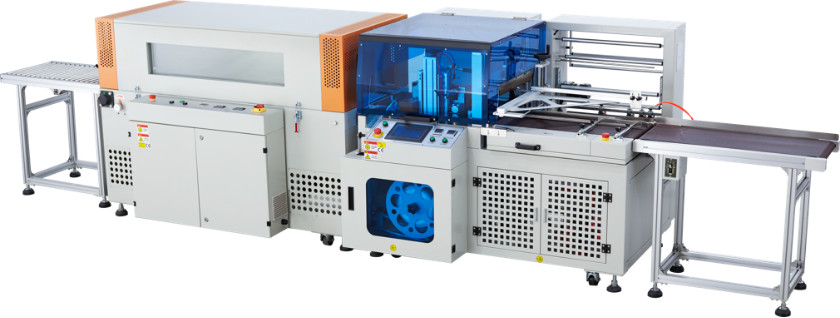

4.3 Visual window shrinking machine
With the visual window shrinking, the shrinking effect is clear at a glance, making it convenient for users to watch.

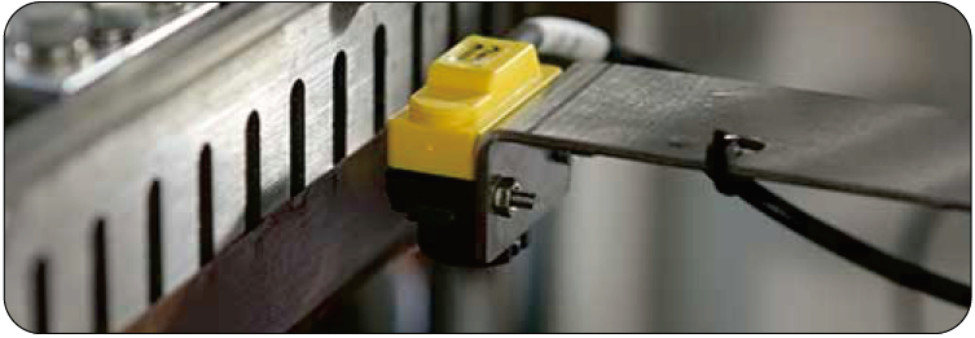

4.4 Automatic sensing electric eye
The electric eye senses the items and automatically identifies the products for sealing, cutting and shrink packaging.

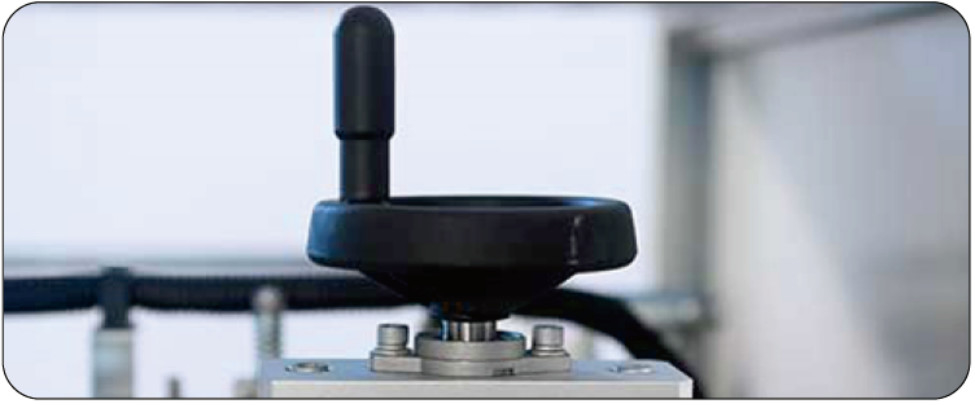

4.5 Adjust the handle
The width and height are adjustable and suitable for products of various specifications.

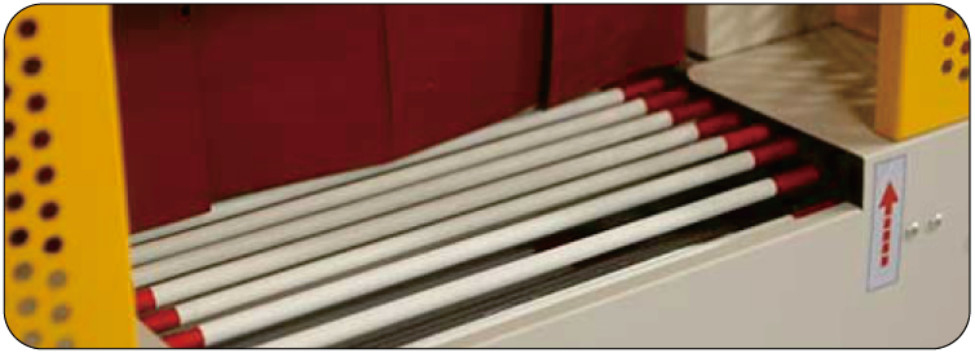

4.6 High temperature resistant silicone tube
The furnace cavity is equipped with multiple high-temperature resistant silicone tubes, which are heated at a constant temperature and have a long service life.
4.7 Simple operation panel
Simple and easy to see, easy for the operator to use and adjust.
