Place of Origin:
CHINA
Brand Name:
JINWANG
Certification:
CE,ISO9001,ISO18000,ISO14000
Model Number:

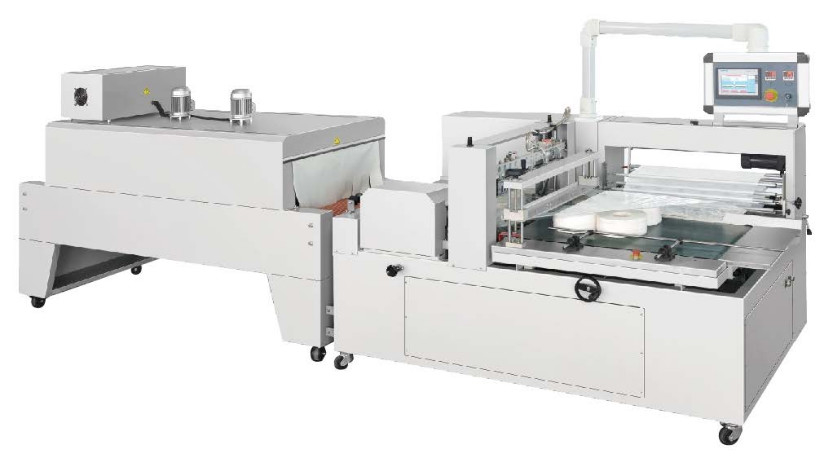

GB-600 Fully Automatic Rolling, Sealing and Cutting Heat Shrink Packaging Machine (Fully Enclosed)
GB-600 Fully Automatic Rolling, Sealing and Cutting Heat Shrink Packaging Machine (Fully Enclosed)
1. Scope of Application
2.Technical Parameters
| 1 | Sealing and Cutting Method | Fully enclosed piping |
| 2 | Power Supply | 380V/50-60Hz/3phase; 12.5KW |
| 3 | Package Size | Width ≤ 600mm; height ≤ 250mm; width + height ≤ 650mm |
| 4 | Applicable Film | POF, PE, folded film |
| 5 | Transfer Speed | Adjustable 40m/min |
| 6 | Shrinking Furnace Conveying | The chain roller sleeve is made of silicone and can be equipped with Teflon mesh belt according to the size of the product. |
| 7 | Platform Height | 780-850mm |
| 9 | Air Pressure | 0.5MPa (5 bar) |
| 9 | Sealing Cutter Material | Teflon coating on steel knife surface |
| 10 | Sealing and Cutting System | Constant temperature heating system, integrated sealing and cutting knife, easy to replace the knife, no smoke and no smell when sealing and cutting |
3. Electrical Configuration
|
SN
|
Name | Manufacturer |
| 1 | Touch Screen | Siemens, Germany |
| 2 | PLC | Siemens, Germany |
| 3 | Through-beam Switch | Japan Omron |
| 4 | Temperature Controller | Japan Omron |
| 5 | Relay | Japan Omron |
| 6 | Switching Power Supply | Japan Omron |
| 7 | Cylinder | Taiwan Airtac/SMC |
| 8 | The Electromagnetic Valve | Airtac Taiwan |
