Pesticides DGD-220BK Fully Automatic Horizontal Bagging Machine

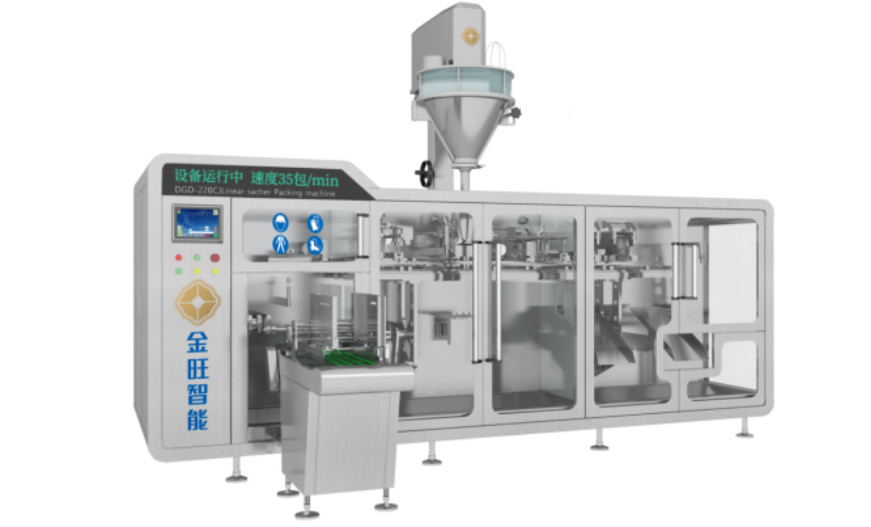

DGD-220BK fully automatic horizontal bagging machine

1.Introduction

The main machine has a patented high-speed rail appearance, real-time data display, and the latest Industry 4.0 intelligent packaging machine.

The DGD-220BK fully automatic horizontal bagging machine includes bag taking mechanism, bag opening mechanism, blowing mechanism, filling mechanism, heat sealing, cold sealing and shaping and other mechanisms. The coordinated actions of each mechanism are completed through the mechanical linkage and cam structure, and the position signal is fed back by the encoder on the main shaft. Under the programmable control of PLC, the functions of bag taking → bag opening → detection → filling → sealing → finished product are realized .

It adopts SUS304 stainless steel arc-shaped frame and tempered glass door cover, and is equipped with a complete dust removal system. It is suitable for the packaging production of various types of premade bag products.

2. Technical Parameters

3. Allocation

4.Features:

4.1 This equipment is mainly used in the production of various types of premade bag products. The packaging is beautiful and well formed; there is almost no waste of packaging materials and materials.

4.2 More environmentally friendly: The whole machine has a closed design to isolate dust inside the machine, and is equipped with a stainless steel dust removal piping system, which is environmentally friendly and pollution-free. (Dust removal pipes and dust collector are optional features)

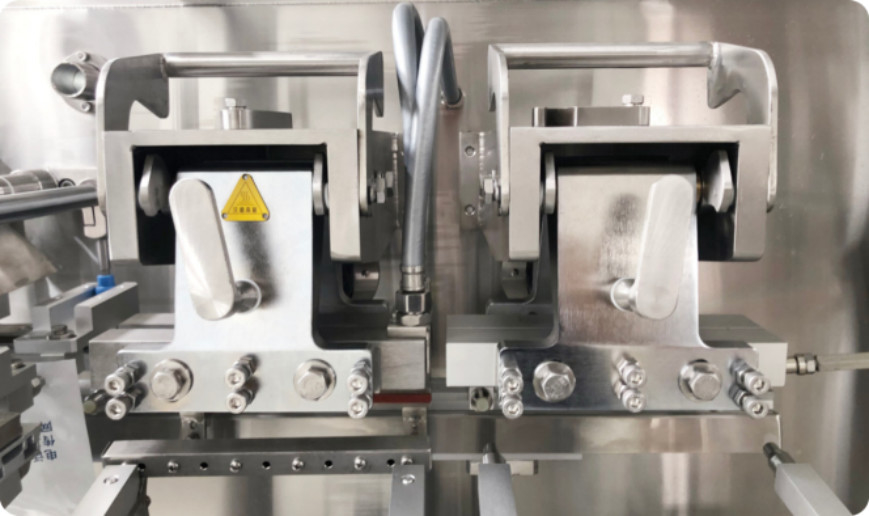

4.3  Easy maintenance: The flip-up ironing block structure makes maintenance and cleaning easy.

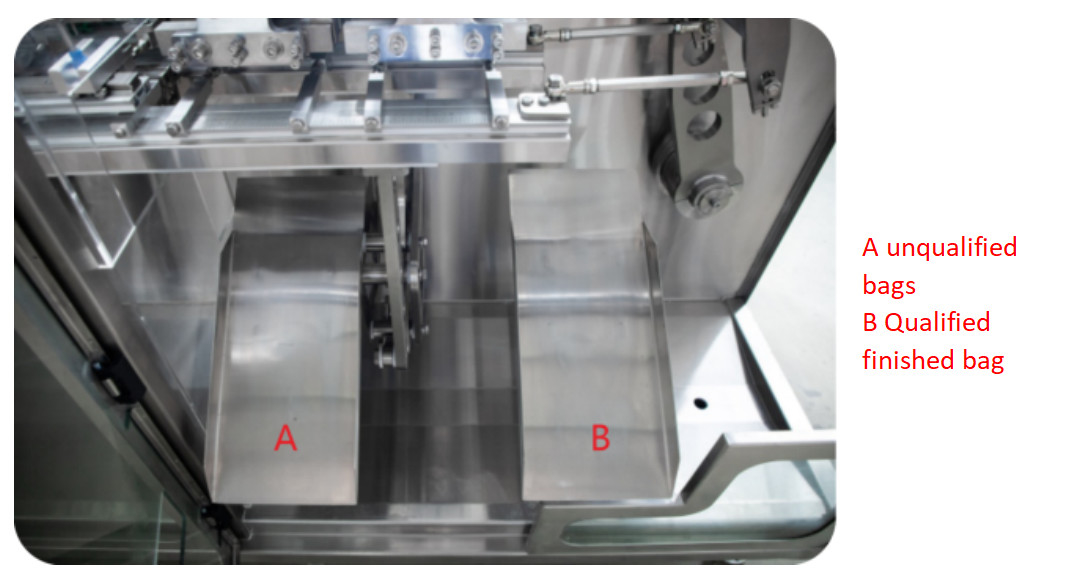

4.4 Cost saving: Unique bag opening detection function, no bag opening, no filling, no heat sealing, the bag can be reused, and no material is wasted. Bags that fail to be opened are automatically separated from finished bags.

4.5 Using Spanish cam technology, the cam generally uses an internal cam, which does not move and has higher operating accuracy.

4.6 The bag picking structure is optimized to extend the bag suction time and make bag picking more accurate;At the same time, the large-capacity bag placing mechanism can store about 300-500 bags. When the equipment is running, it can reduce the frequency of bag placing and improve production efficiency.

4.7 More durable:Exquisite design technology and imported CNC center parts processing, high precision and high standards ensure the stability and durability of each part.

4.8 Temperature control integrated module: real-time monitoring of temperature changes,Touch screen operation control, clear at a glance, ensuring the stability and reliability of equipment operation to the greatest extent.

4.9 Comes with a vacuum pump to reduce the impact of external air pressure fluctuations on bag loading and bag opening.

4.10 There is a trapezoidal water tank at the bottom of the whole machine, and the water outlet is connected to the sewage pipe, making cleaning and drainage more convenient.

5.Support and Services:

Our technical support and services for the Bag Packing Machine are designed to provide the most comprehensive assistance for our customers. Our team of experienced engineers and technicians are available to provide assistance with installation, maintenance, troubleshooting, and repair services.

We offer in-house training on the operation and maintenance of the machine to ensure that our customers can get the most out of their purchase. Additionally, we provide online support through our website, which includes FAQs, product manuals, and other helpful resources.

If you ever have any questions or concerns about the Bag Packing Machine, our team of experts are available to help. We believe that customer satisfaction is our top priority, and we strive to provide the best technical support and services possible.

6.Packing and Shipping:

The Bag Packing Machine will be securely packaged in a cardboard box to protect it during shipping. We will use a reliable carrier to ship the product to the customer's address.
