Place of Origin:
Changzhou, China
Brand Name:
JWIM
Certification:
CE. ISO9001
Model Number:
GD6-350

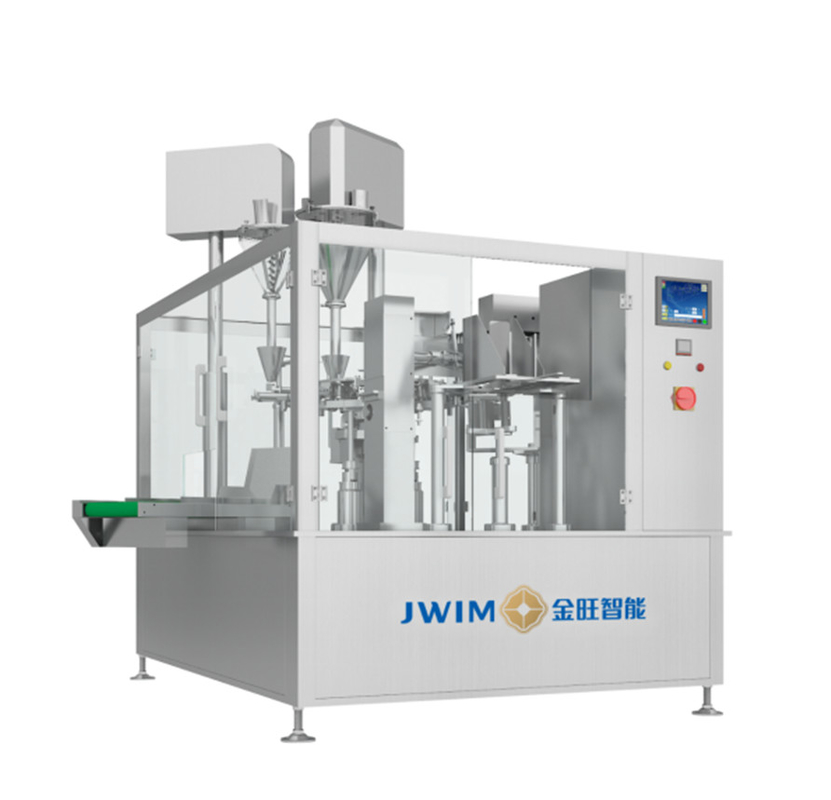

GD6-350 fully automatic rotary bagging machine
1.Introduction
This equipment has a rotary structure, six stations, and a wide range of packaging. It can package powders, granules and other materials for metering and packaging. You only need to select different metering and filling devices according to different materials.
The equipment changes packaging bag specifications quickly, and the width of the automatic bag feeding device can be adjusted easily and quickly by adjusting the handle; the machine is equipped with a standard detection device, which can detect that the filling device does not fill when there is no packaging or the packaging bag is not opened. , the heat sealing device does not seal, thus avoiding waste of packaging materials and raw materials.
2. Technical Parameters
|
3. Allocation
| SN | Name | brand |
| 1 | PLC | SIEMENS |
| 2 | Touchscreen | SIEMENS |
| 3 | Frequency converter | SIEMENS |
| 4 | Servo electrical appliances | SIEMENS |
| 5 | The electromagnetic valve | SMC |
| 6 | Breaker | SIEMENS |

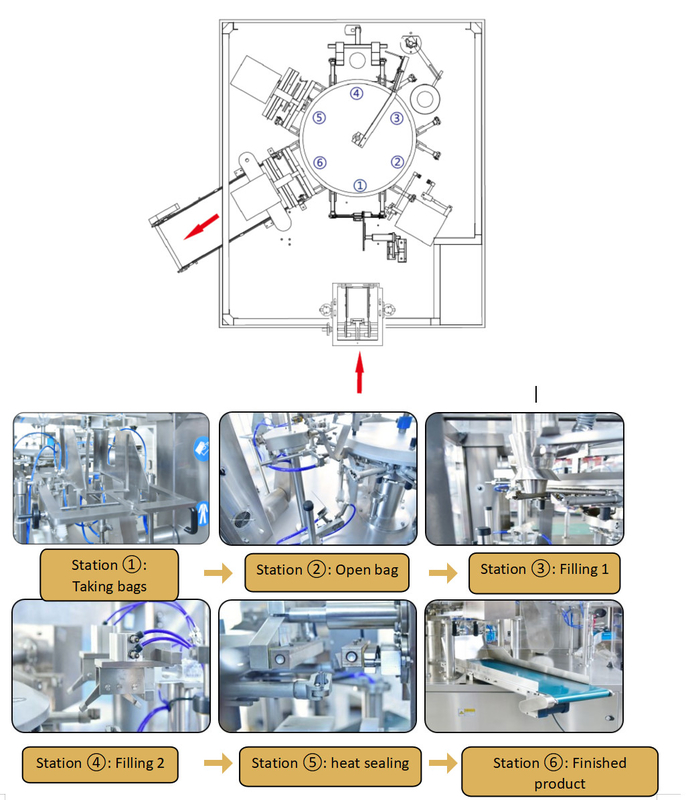

4.Working Process
5.Advantage

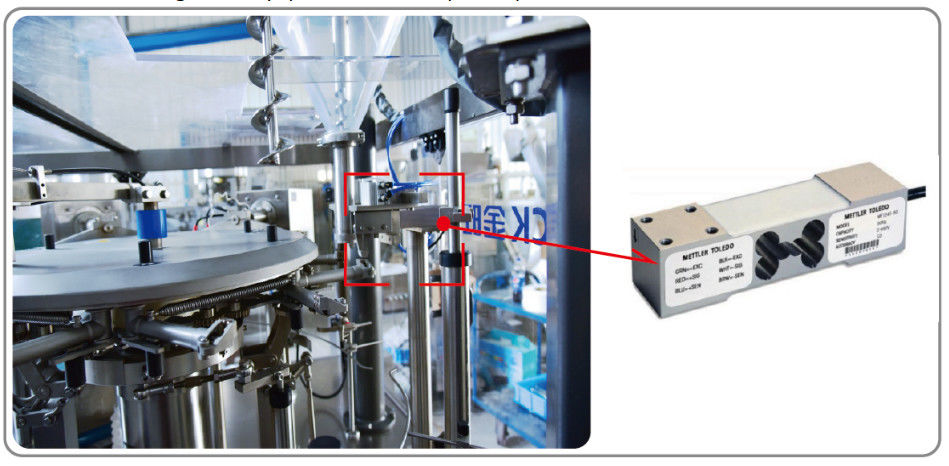

5.1 Adopt the secondary filling mode. The first time is a large-dose preliminary filling to ensure the speed of the whole machine; the second filling uses the American Mettler Toledo weighing sensor to ensure the filling accuracy. (This feature is optional)

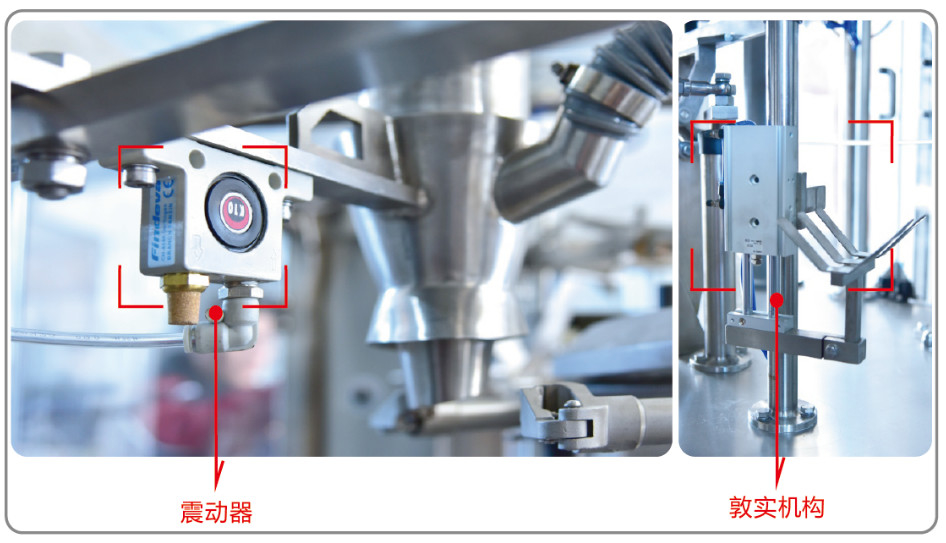

5.2 According to the characteristics of the powder, a vibrator is added to the cutting place to make the cutting smoother and without clogging. The filling bottom is solid, and the materials in the bag are more abundant.

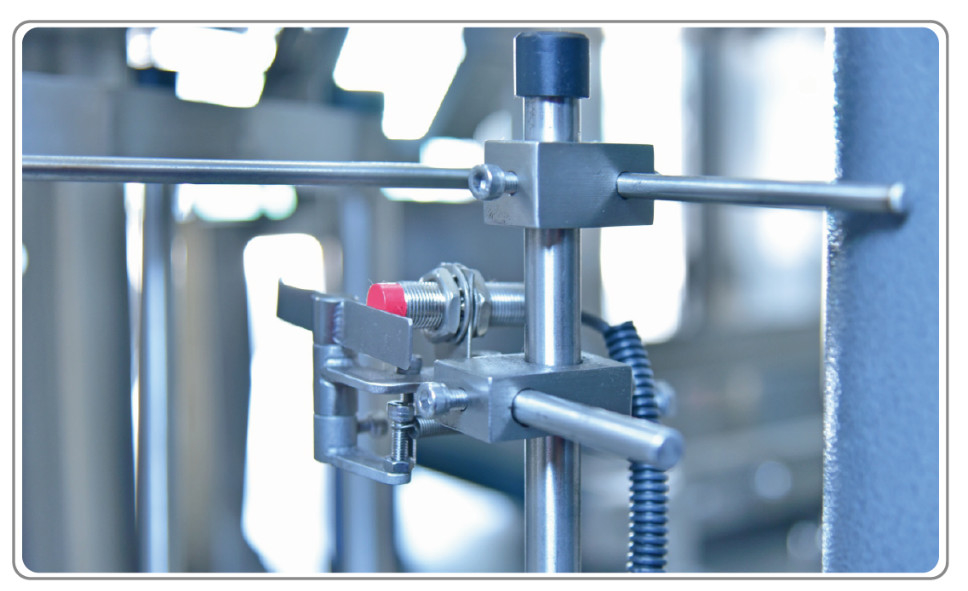

5.3 Contains blanking detection device. There is no bagging or emptying, and empty bags are not sealed, reducing the waste of materials and materials and contaminating equipment.
5.4 The packaging machine table is made of food-grade 304 stainless steel with a thickness of 2mm, a mirror panel, and the electrical box is made of 304 stainless steel with a thickness of 2mm. Bag loading, bag opening, sealing and clamping claws are made of 304 stainless steel
5.5 The cam of the transmission part is made of 45# forged material, with a heat-treated hardness ≥HR50 degrees. The shaft is a 45# ground shaft with smooth surface, wear resistance and durability.
5.6 The machine comes standard with automatic monitoring system deviceIt can detect air pressure, temperature controller failure, and whether the packaging bag mouth is opened to judge the machine status. It can control whether the coding device, filling device, and heat sealing device are in action, thereby avoiding waste of packaging materials and raw materials and saving money. Cost of production.
5.7 The equipment is equipped with dust removal pipes, which can be connected with the engineering exhaust system to reduce dust on the production site.(This feature is optional)
6.Support and Services:
Our technical support and services for the Bag Packing Machine are designed to provide the most comprehensive assistance for our customers. Our team of experienced engineers and technicians are available to provide assistance with installation, maintenance, troubleshooting, and repair services.
We offer in-house training on the operation and maintenance of the machine to ensure that our customers can get the most out of their purchase. Additionally, we provide online support through our website, which includes FAQs, product manuals, and other helpful resources.
If you ever have any questions or concerns about the Bag Packing Machine, our team of experts are available to help. We believe that customer satisfaction is our top priority, and we strive to provide the best technical support and services possible.
7.Packing and Shipping:
The Bag Packing Machine will be securely packaged in a cardboard box to protect it during shipping. We will use a reliable carrier to ship the product to the customer's address.
8.FAQ:
