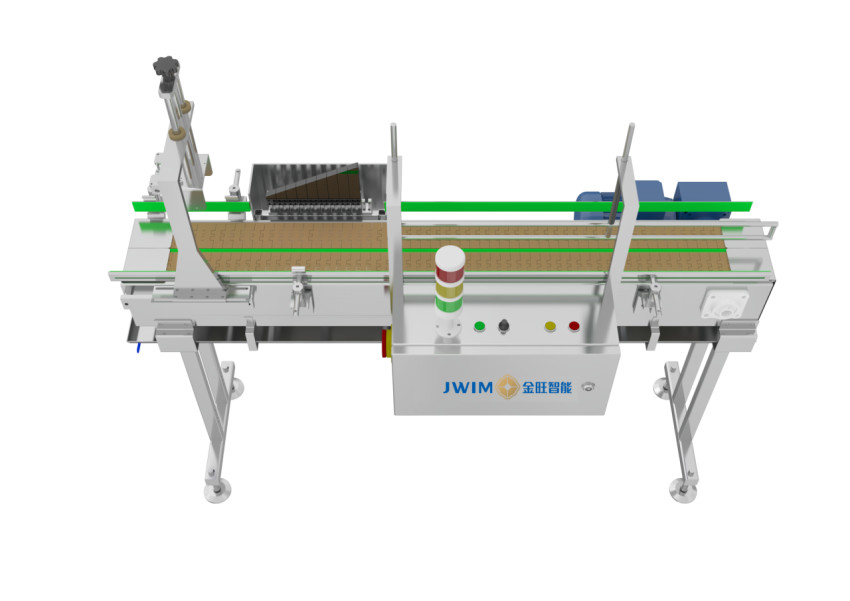

6800 BPH GTC-2Q No Cover, Crooked Cover, No Aluminum Foil Rejecting Device
1. Introduction

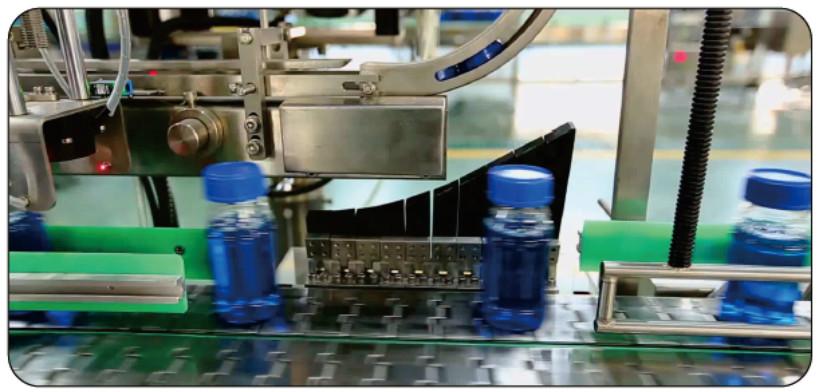

This equipment has dual runways and dual detection mechanisms; it is used to automatically divert the flow of crooked caps, no caps, and high caps after capping. Its structure is simple and easy to adjust.
2. Technical Parameters
| 1 | Applicable bottle type | Φ40-95mm H80-230mm |
| 2 | Applicable cover type | Φ20-70mm H20-40mm |
| 3 | Production speed |
≤6800 bottles/hour *Actual production capacity varies depending on product size, packaging material, material characteristics, etc. |
| 6 | Power/power | ~220V 50Hz/0.75KW |
| 7 | Equipment size | 1500×600×1440mm (L×W×H) |
| 8 | Total Weight | About 70Kg |
3. Advantages
3.1 There is no aluminum foil rejection mechanism, which can divert the flow of bottles without caps, without aluminum foil and high caps.
3.2 Defective products are diverted to another conveyor belt through the cylinder.
