Place of Origin:
made in China
Brand Name:
jinwang
Certification:
CE,CO,ISO
Model Number:
XH-1000

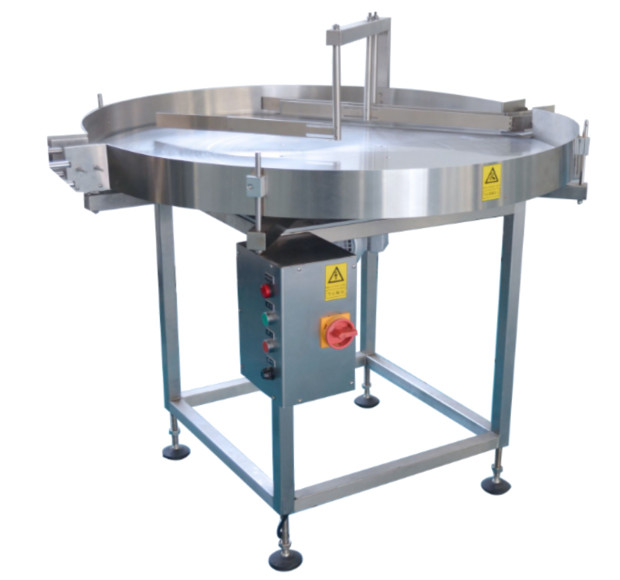

XH-1000 Rotary Buffer Table
1. Introduction
XH-1000 Rotary Buffer table is used for the buffer conveyor for round bottles in agrochemical and chemical industries. It can improve the filling line efficiency by buffering table. France Schneider inverter speed adjusting, the speed can be adjusted according to filling line speed. The machine is making with SUS304.
2. Technical Parameters
| 1 | Applicable Bottle | Round Bottle Diameter: 40-95mm, Height: 80-230mm |
| 2 | Power | 220V 50HZ/0.37KW |
| 3 | Rotary Plate Size | 1000mm |
| 4 | Weight | Around 180Kg |
| 5 | External Dimension | 1175×1000×1275mm(L×W×H) |
3. Allocations
|
No.
|
Opponent
|
Brand
|
Remarks
|
| 1 |
Frequency Motor |
Schneider |
 |
| 2 |
Voltage Apparatus |
Schneider |
|
