Place of Origin:
CHINA
Brand Name:
JINWANG
Certification:
CE, ISO9001
Model Number:
SGJ-2B Automatic Cap Elevator

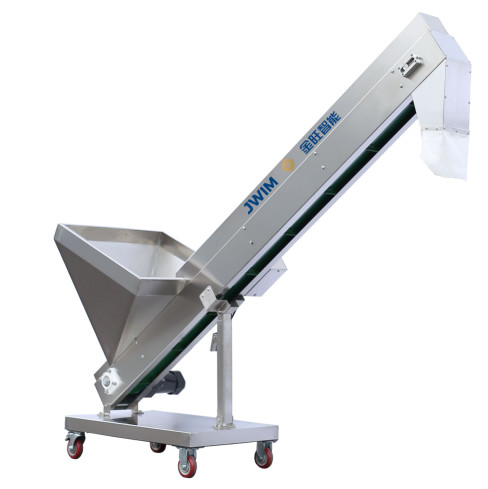

10000 PCS/H SGJ-2B Automatic Cap Elevator
1. Introduction
The machine is matched with the capping machine and is used to transport all kinds of lids to the capping device. The conveying speed is adjustable. When the inspection switch detects that there is no cover, it will automatically start to conveying caps, and when the cap sorter is full, it will automatically stop.
2. Technical Parameters
| 1 | Production capacity |
≤10000 pcs/h *Actual production capacity varies depending on product size, packaging material, material characteristics, etc |
| 2 | Cap Specifications | Φ20-70mm H20-40mm |
| 3 | Belt Specifications | W: 140mm H: 30mm Stop distance: 300mm |
| 4 | Power Supply | ~220V 50Hz/0.18KW |
| 5 | External Dimensions |
Storage cover hopper 950X950mm, Board Leader 2430mm |
