Place of Origin:
CHINA
Brand Name:
JINWANG
Certification:
CE, ISO9001
Model Number:
SFJ-2 Powder Elevator

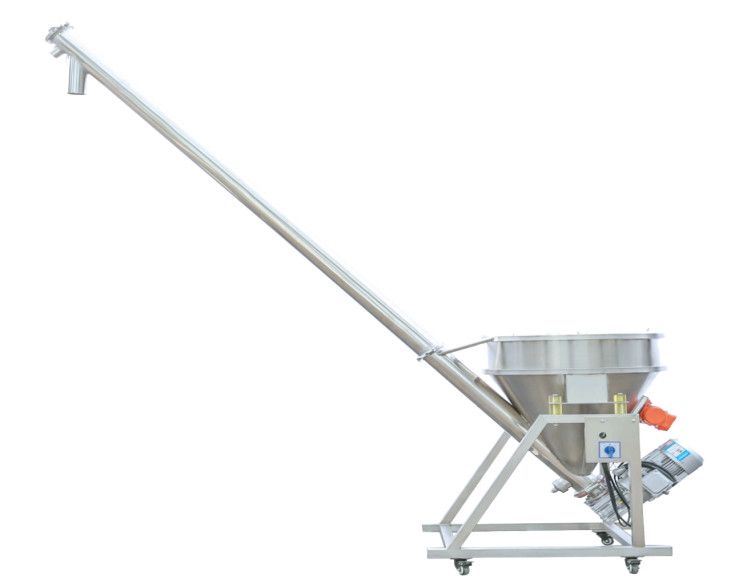

SFJ-2 Powder Elevator 380V 50Hz 0.75KW
1. Introduction
SFJ-2 powder feeding machine is composed of silo, screw feeding mechanism, control system, etc. This machine is suitable for conveying powder materials or micro particles with good fluidity. The whole machine adopts SUS304 stainless steel processing production, with good anti-corrosion performance.
2. Technical Parameters
| 1 |
Power
|
Three-phase AC380V 50Hz 0.75KW |
| 2 | Tube Diameter | Φ102mm |
| 3 | Elevating Amount |
500-1200Kg/h *Actual production capacity varies depending on product size, packaging material, material characteristics, etc |
| 4 | Bucket Capacity | 75L |
| 5 | Weight | ~100Kg |
3. Advantages
3.1. It uses France Schneider AC contactor and thermal relay control, with over current, overload, over voltage and short circuit protection.
3.2. Linkage Control: when the material level in the bin is insufficient automatically start, when the material level to automatically stop; When the continuous feeding time exceeds the set value, automatic stop and stop alarm, in order to avoid abnormal conditions after burning out the motor.
