Place of Origin:
China
Brand Name:
JWIM
Certification:
CE，ISO
Model Number:
CFZ-2

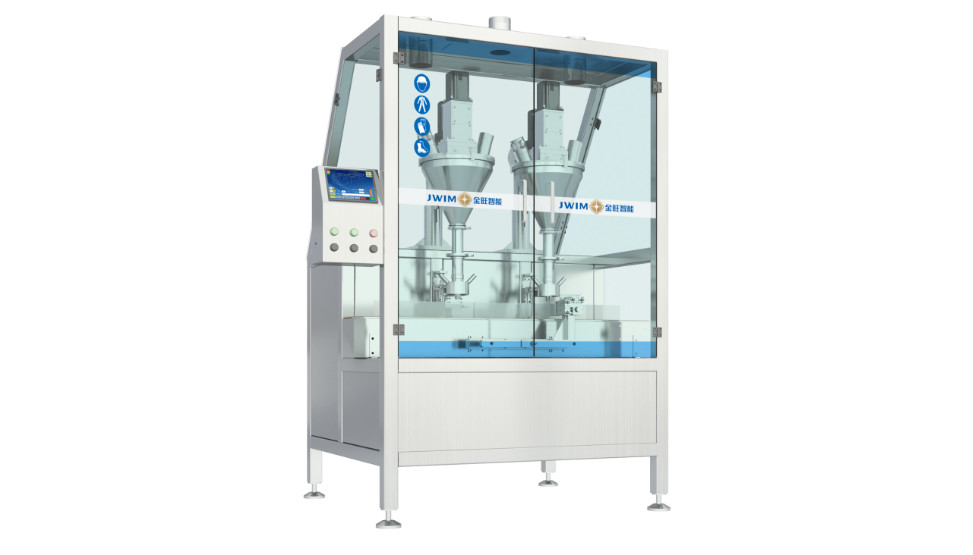

CFZ-2 Fully Automatic Rotary Bottled Powder Packaging Machine
1. Introduction
CFZ-2 fully automatic linear bottled powder packaging machine adopts a linear filling structure and is simple in structure. The equipment is made of SUS304 stainless steel and has excellent anti-corrosion properties. The filling part is controlled by servo motor with high precision. The filling process is carried out under the control of PLC program, and all operations are completed on the touch screen.
2. Technical Parameters
| 1 | filling speed | ≤2000 bottles/hour (take 500g as an example) |
| 2 | Applicable bottle type |
Round bottle: diameter φ40-95mm, bottle height 80-230mm *Different bottle diameters require different molds |
| 3 | Measuring accuracy | ±1%*Measuring accuracy varies depending on material characteristics, filling volume and feeding device |
| 4 | Power/power | Three-phase AC380V 50Hz/2KW |
| 5 | Air pressure | 0.6-0.8MPa |
| 6 | Dimensions |
1995×1320×2185mm(L×W×H) |
| 7 | weight | About 800Kg |

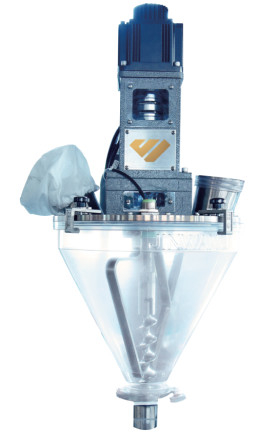

3.1 The French Schneider servo system combined with a mature powder filling machine ensures stability and reliability during filling.

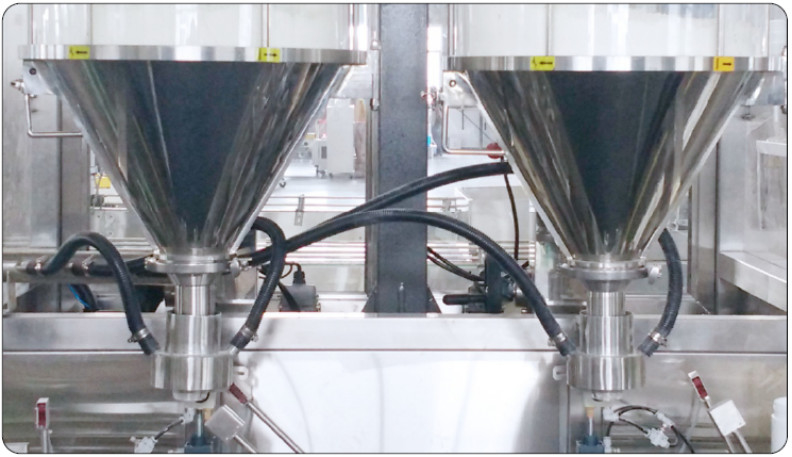

3.2 The matching unloading and dust removal pipe can be connected with the dust collector pipe to suck away the spilled dust during unloading to reduce pollution to the production environment.
3.3 The whole machine electronic control system adopts French Schneider configuration, integrated electronic control system, more stable, reliable, safe and low energy consumption.
