Place of Origin:
China
Brand Name:
JWIM
Certification:
CE，ISO
Model Number:
DGD-220CJ

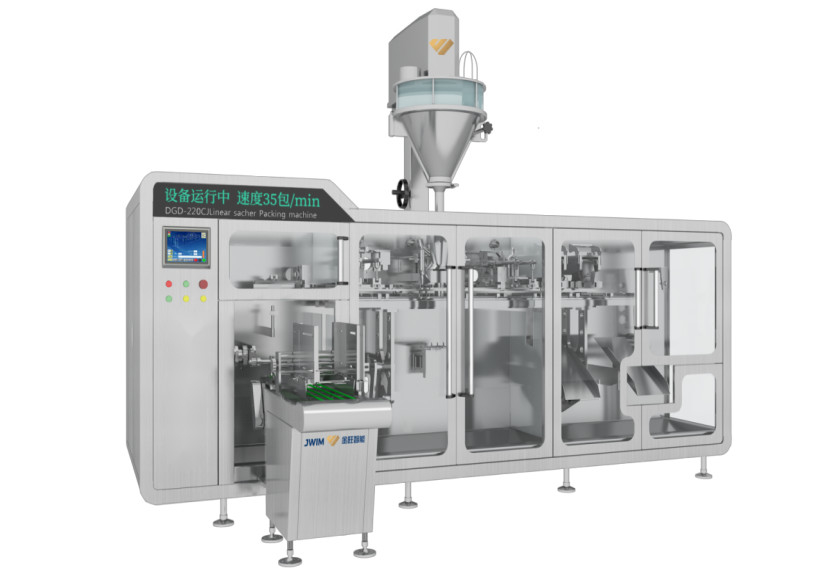

DGD-220CJ Automatic Horizontal Pouch Packing Machine
1. Introduction
DGD-220CJ Automatic Horizontal Pouch Packing Machine includes bag taking mechanism, bag opening mechanism, blowing mechanism, filling mechanism, heat sealing, cold sealing and shaping mechanism. The coordinated action of each mechanism is completed through the mechanical linkage and cam structure, and the position signal is fed back by the encoder on the spindle. Under the programmable control of the PLC, the function of bag removal → bag opening → detection → filling → sealing → finished product is realized .
It adopts SUS304 arc-shaped frame and tempered glass door cover, with a complete dust removal system, which is suitable for packaging production of various prefabricated bag products.
2. Technical Parameters
| 1 | Capacity |
30-50Pouches/Min *Actual capacity: According to product size, packaging material, material characteristics, etc. |
| 2 | Applicable Pouches Size |
W100-215mm L140-300mm |
| 3 | Volume | ≤500g *According to the physical properties of the raw materials and the different feeding devices. |
| 4 | Precision | ±1-2% *According to the physical properties of the raw materials and the different feeding devices |
| 5 | Air pressure | 0.5-0.7MPa |
| 6 | Power supply | ～380V 50Hz/3.5KW |
| 7 | External Dimension | 3460×2211×1561mm(L×W×H) *Without powder filling device |
| 8 | Weight | About 2500Kg |
3. Functions
3.1.This equipment is mainly used in the production of various types of pre-made bags. The packaging is beautifully formed and well formed, without packaging materials and material waste.

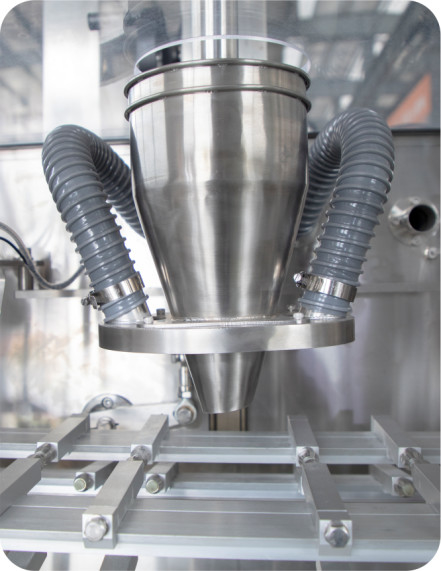

3.2. More environmentally friendly: The entire confidential closed design, isolates the dust in the machine, and is equipped with a stainless steel dust removal pipeline system, which is environmentally friendly and pollution-free. (Dust removal pipeline and dust collector are optional functions)

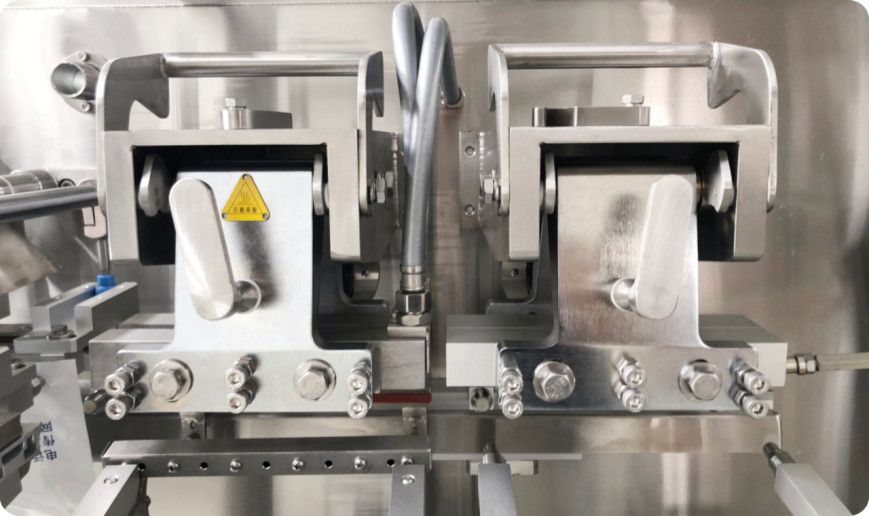

3.3.Easy to maintain: upturned ironing block structure, convenient for maintenance and cleaning.

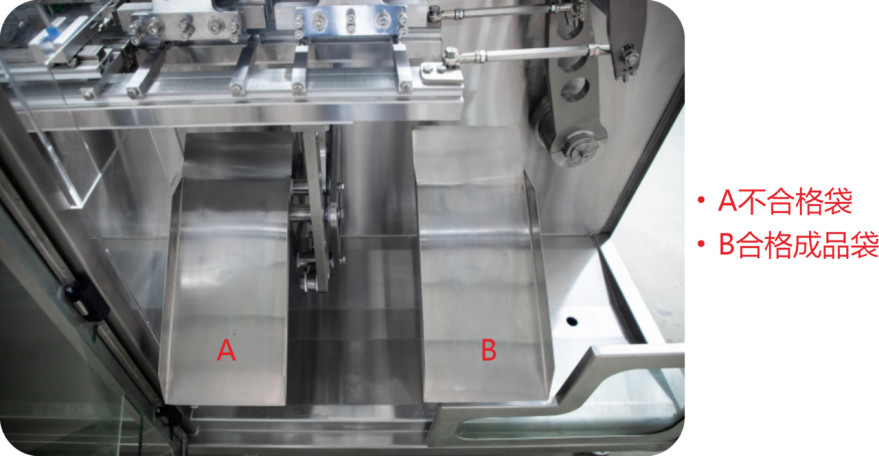

3.4. Cost saving: unique bag opening detection function, no bag opening, no filling, no heat sealing, the bag can be reused, and no material is wasted.If the bag is not opened successfully, it will be automatically shunted with the finished bag.
3.5.Using Spanish cam technology, the cam generally uses an internal cam, which does not run position and has a higher operating accuracy.
3.6.Optimization of bag taking structure,Extend the suction bag time, and take the bag more accurately. At the same time, the large-capacity bag placement mechanism can store about 300-500 bags. When the equipment is running, the bag placement frequency is reduced and the production efficiency is improved.
3.7.More durable: Superb design technology and imported CNC parts processing, high precision and high standards, to ensure the stability and durability of each spare parts.
3.8.Temperature control integrated module: real-time monitoring of temperature changes, touch screen operation control, clear at a glance, to maximize the stability and reliability of equipment operation.

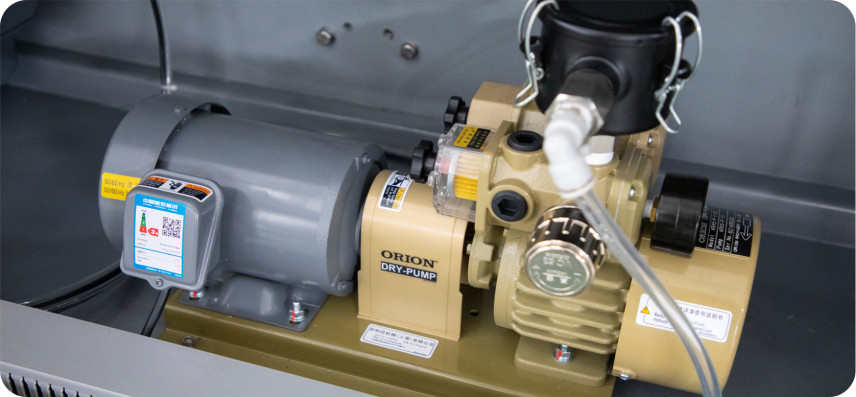

3.9. Built-in vacuum pump to reduce the influence of outside air pressure fluctuations on bag loading and bag opening.
3.10.There is a trapezoidal water tank at the bottom of the whole machine, and the water outlet is connected to the sewage pipe, which makes cleaning and drainage more convenient.
SFJ-2 Powder Elevator
Technical Parameters:
| 1 | Power | Three Phase AC380V 50HZ/1.5KW |
| 2 | Pipe diameter | Φ102mm |
| 3 | Transportation volume | 500-1200kg/hour (actual capacity depends on the characteristic and density of the material) |
| 4 | Hopper volume | 0.12m³ |
| 5 | Weight | About 100kg |
