Place of Origin:
CHINA
Brand Name:
JINWANG
Certification:
CE, ISO9001
Model Number:
WT-3000J

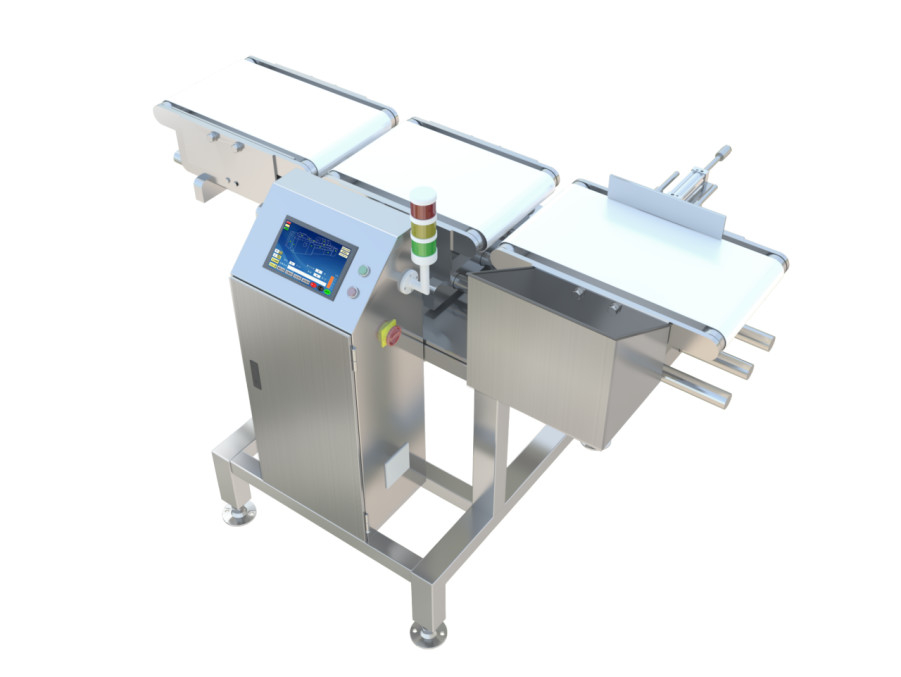

WT-3000J Carton Weighing Scale
1. Introduction
WT-3000J Is your ideal auto weight checking solution, the fast and accurate weight collection and data transmission device make the weight checking is widely used in the auto packing process. The frame is SUS304.
2. Technical Parameters
| 1 | Maximum Range | 3000g |
| 2 | Smallest Display | 0.1g |
| 3 | Dynamic Accuracy | ±0.3g(3σ) |
| 4 | Speed | ≥180P/min |
| 5 | Weighing Belt Width | 300mm |
| 6 | Belt Length (Roller Center Distance) | 500mm |
| 7 | Input Length (Roller Center Distance) | 500mm |
| 8 | Output Length (Roller Center Distance) | 500mm |
| 9 | Roller Shaft Diameter | 29mm |
| 10 | Filling Line Height | 650±50 mm |
| 11 | Conveying Direction | Left-Right (Facing the display) |
| 12 | Rejecting | Cylinder Push Rod/Blow |
| 13 | Touch Screen | 7 inch color touch screen LCD |
| 14 | Frame | Stainless Steel |
| 15 | Conveyor Roller | Anodic Oxidation of Aluminum Alloy |
| 16 | Load cell | Mettler Toledo Hig Precision Weighing Sensor |
| 17 | Speed Adjusitng | Screen Speed Adjusting, three table speed adjustable |
| 18 | Belt | White, Wearable PU |
| 19 | Control Box | Stainless Steel |
| 20 | Anchor Bolt | Stainless Steel Material, Height Adjustment: ±50 mm |
| 21 | Communication Methods | RS485,TCP/IP |
3. Mechanical Structure Parameters
| 1 | Conveyor Height | * Customer specification |
| 2 | Machine Frame | SUS304 |
| 3 | Conveyor | Special Aluminum Alloy, Plate Material: SUS304 |
| 4 | Anchor Bolt | Rubber Material, Height Adjustment: ±50 mm |
| 5 | Control Box | Stainless Steel |
| 6 | Belt | White, Wearable PU |
| 7 | Working Environment | The installation site should avoid vibration and air flow |
| 8 | Working Temperature | ~100℃- 400℃ |
4. Allocations
| No. | Name | Brand |
| 1 | Load Cell | Mettler Toledo |
| 2 | Sensor/Reflector plate | Autonics |
| 3 | Motor | YAKO |
| 4 | Quick Break Switch | Schneider |
| 5 | Circuit Breaker | Schneider |
| 6 | Button | Schneider |
| 7 | Relay | Schneider |
| 8 | Power Switch | Schneider |
| 9 | Touch Screen | Weinview |
| 10 | Flat Belt | Xinbiao |
| 11 | Bearing | NSK |
5. Features
5.1. 10 inch color touch screen LCD, Touch screen language: Chinese, English, Dynamic and static weighing automatic conversion, Tertiary Password Protection.
5.2. Touch screen can record weighing data and save at least 100 recent records. It has a curve display of historical data, save at latest 50 dynamic data.
5.3. Continuous Error Alarm: Every 5-10 (the number can be set, maximum 255) continuous error weighing, it will alarm.
5.4. The parameters of various products can be set and saved (at least 100 data). Operator can use it directly.
5.5. Electrical components and hardware are with industrial-grade reliability.
5.6. Power failure protection function, parameters remain unchanged if any accidental power failure happened.
5.7. Data statistics function: Total number of products/underweight products/ overweight products can be saved in a period of time.
