Place of Origin:
Made in China
Brand Name:
Jinwang
Certification:
CE, ISO9001
Model Number:
TN-200LD

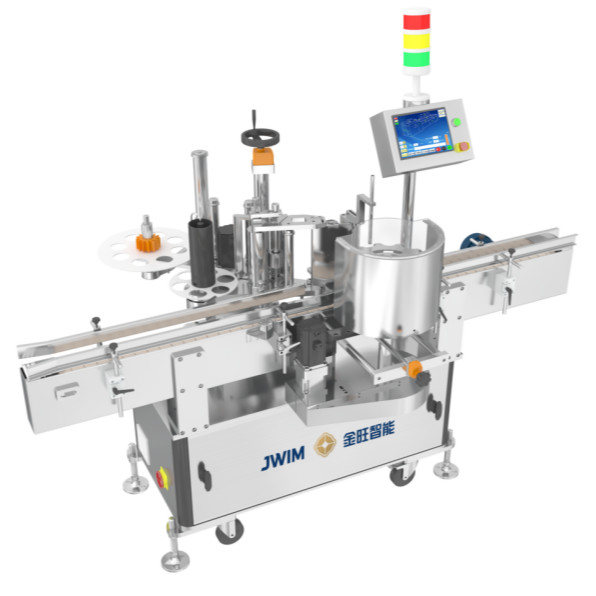

7000BPH Big-Drum Automatic Sticker Labeling Machine Intelligent Self-Adhesive
1. Introduction of Labeler
TN-200LD drum double-sided self-adhesive labeling machine adopts programmable control, touch man-machine interface and servo driven labeling. The whole machine is easy and intuitive to operate, and has rich help functions and fault display functions.It is suitable for automatic labeling of self-adhesive labels of various square flat drums.
2. Technical Parameters of Intelligent Self-adhesive Labeling Machine
| 1 |
Labeling Speed |
50ml:7000 bottles/hour,500ml:5000 bottles/hour, 1000ml:4000 bottles/hour *The actual production capacity varies according to the product size and packaging material. |
| 2 | Applicable Bottle Diameter | Φ30-95mm |
| 3 | Label Size | Height:20-180mm length:50-320mm |
| 4 | Accuracy | ±1mm *The labeling accuracy varies according to different materials and label materials |
| 5 | Label Roll |
Inside diameter of label roll Φ76.2mm maximum label roll outer diameter Φ340mm The width of label bottom paper is 16～200mm |
| 6 | Power Supply | ～220V 50Hz/2.2KW |
| 7 | Machine Size |
1960×1260×1740mm(L×W×H) |
| 8 | Machine Weight |
About 350Kg |
3. Electrical Configurations of Labeling Machine
| S/N | Name | Brand |
| 1 | PLC | Schneider |
| 2 | Applicable Bottle Diameter | Schneider |
| 3 | Label Size | Schneider |
| 4 | Accuracy | Schneider |

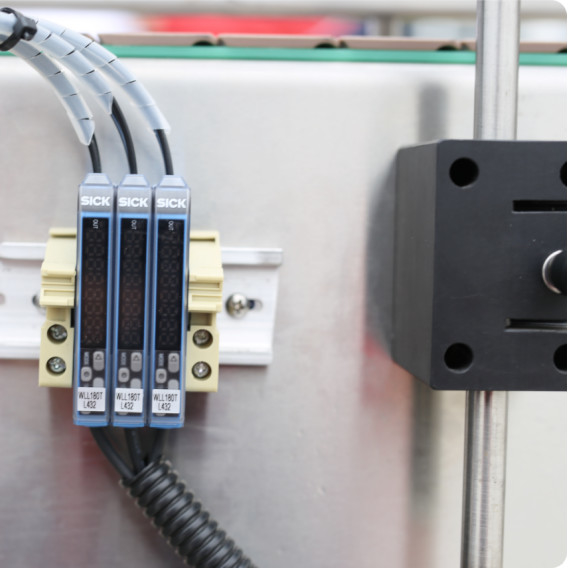

| 5 | Label Roll | Sick |
| 6 | Power Supply | Schneider |
4. Advantages of TN-200LD Labeling Machine
|
High Precision
|
The servo motor drives the labeling mechanism to ensure the high precision of labeling. |
|
Stability
|
The label feeder is constructed of driven roller, which adopts wear-resistant rubber. Its excellent friction ensures the long-term stability of the label sending function. |
|

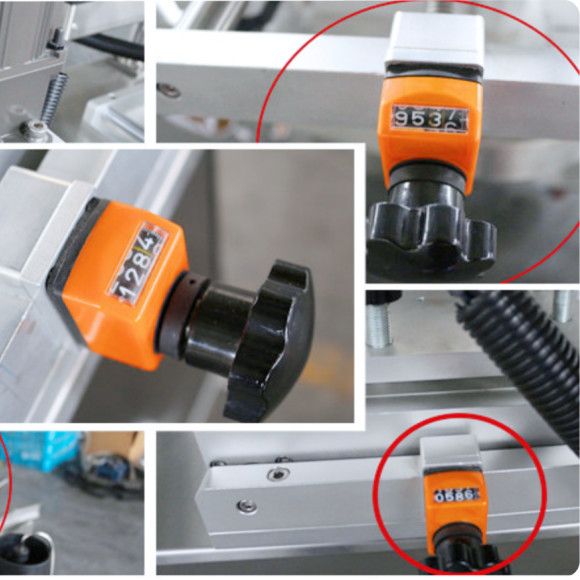

Universality
|
The center sleeve seat of the label disc is fixed by two layers,and made of soft polyurethane. |

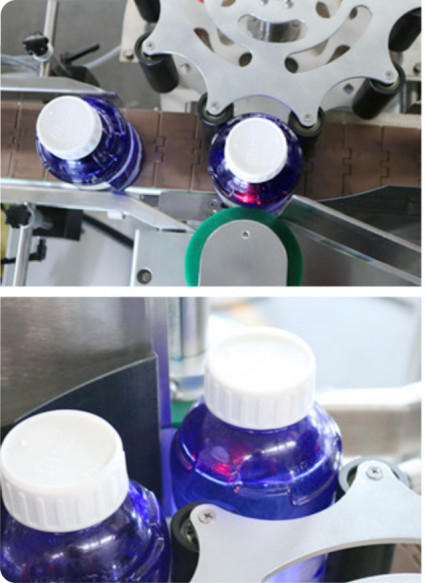

| High productivity | Bottle dividing and shaping mechanism + dislocation labeling to improve labeling stability and facilitate adjustment |
5. Machine Dimension
